Pedal 4Service guide v1.0.44. Bodywork

4.2 Front Bumper

4.2.1 Location & Components

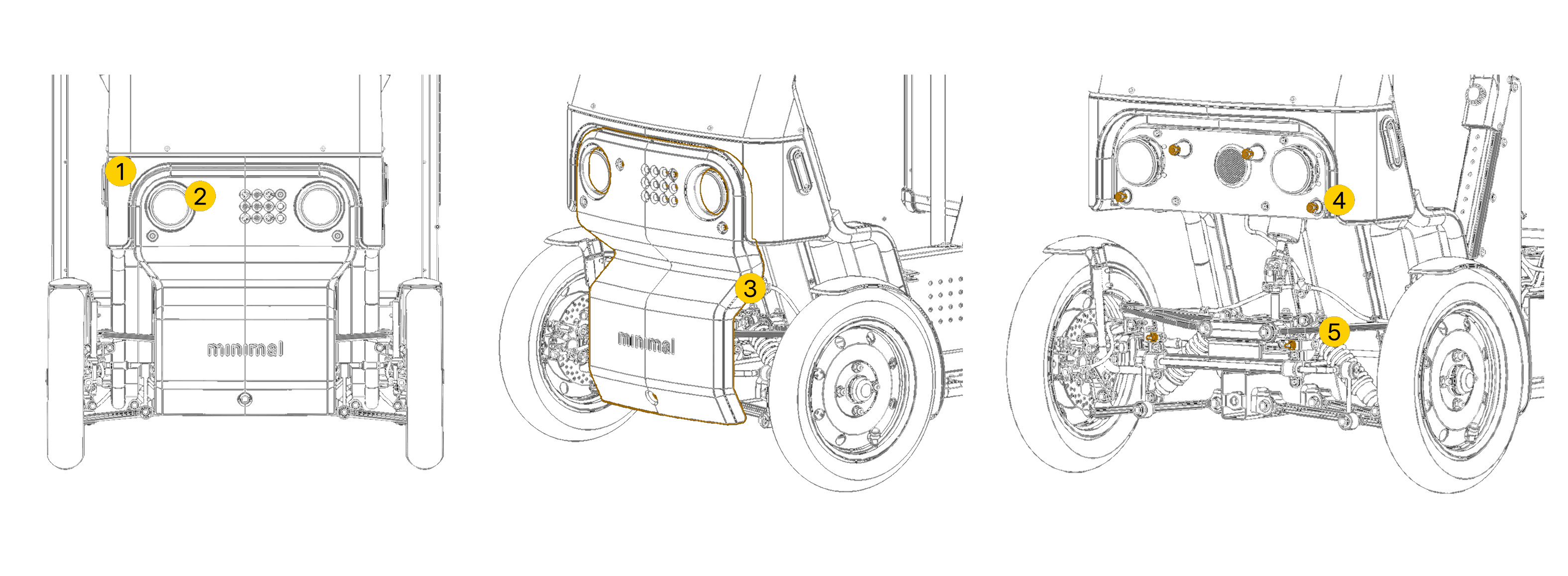

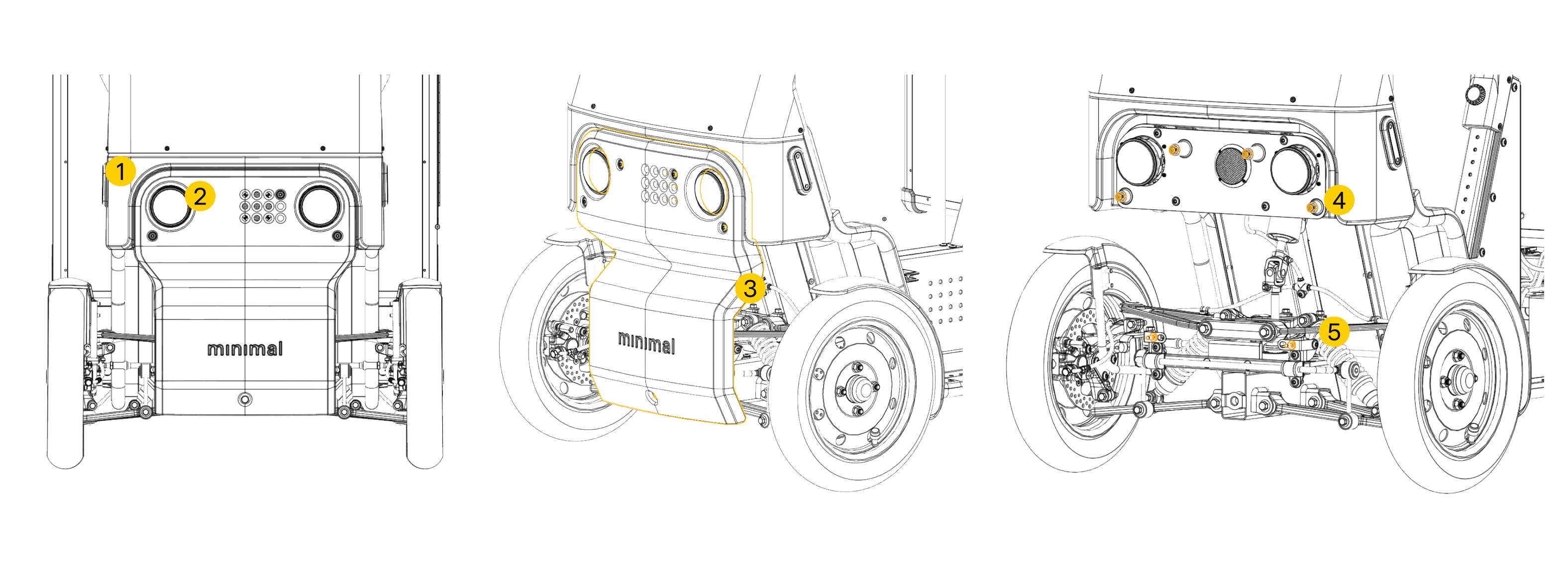

FBL
  1. Front fascia
  2. Headlights
  3. Front bumper
  4. M8 x 20 Flanged Bolts (Front Bumper Securing Bolts)
  5. Front Bumper Mounting Bracket

4.2.2 Required Parts

Part NamePart NumberQuantity
Front bumperPRT-0015741
M8x20 flanged boltsPRT-0011006
Front bumper mounting bracketPRT-0013402

4.2.3 Required Tools

Tool NameAttachment TypeHardware Type to RemoveQuantityTorque Spec
Torque WrenchT40 Torx SocketM8 x 20 Flanged Bolts (bumper mounting brackets)220Nm
RatchetT40 Torx SocketM8 x 20 Flanged Bolts (front securing bolts)4Tighten until the bolt is secured in the rubber nut

4.2.4 Replacement Instructions

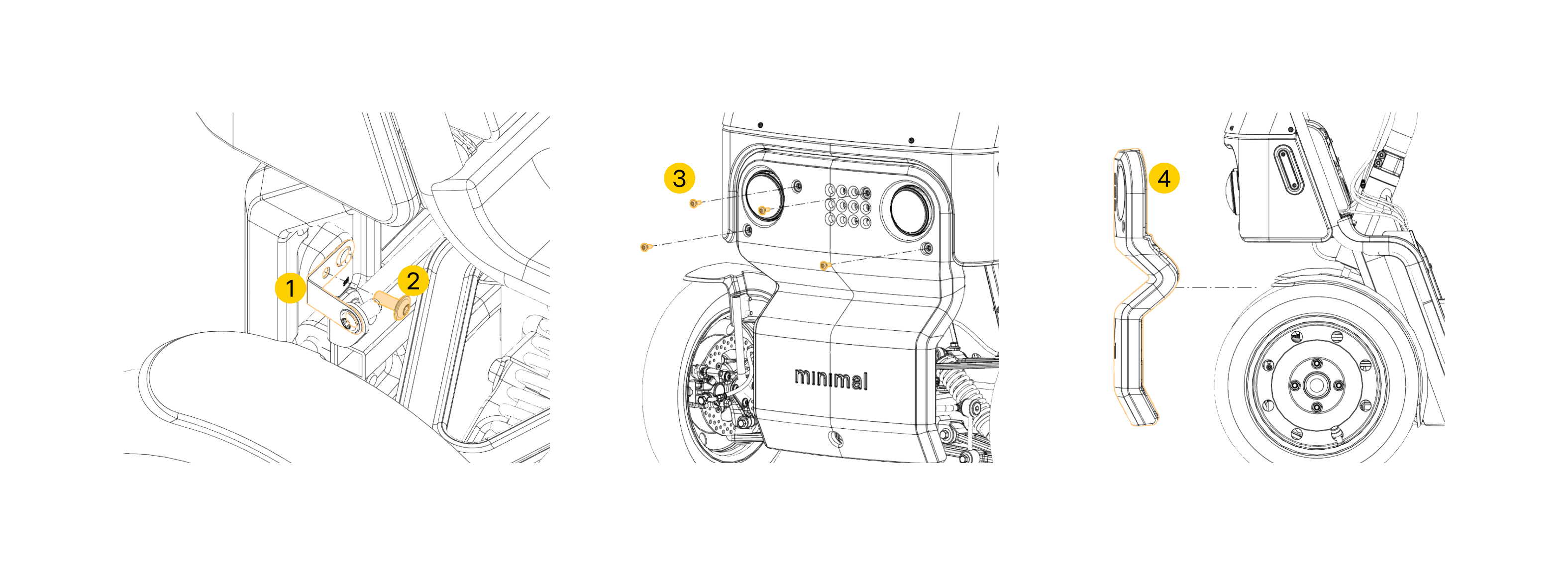

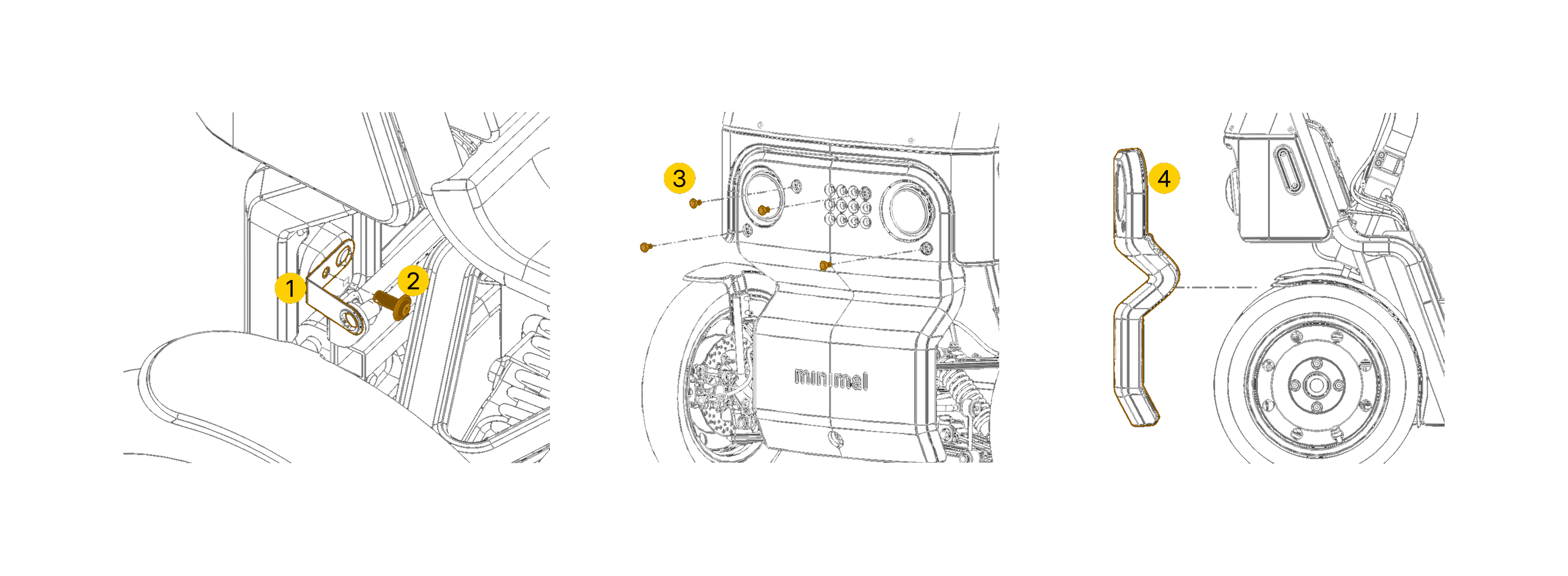

FBR
  1. Bumper mounting bracket
  2. Mounting bracket bolt
  3. Front securing bolts
  4. Front bumper

Identify the bumper for replacement

Detach lower mounting bracket bolts

  • Using a T40 Torx socket, remove the left and right mounting bracket bolts securing the bumper.

Remove front securing bolts

  • Loosen the front-facing bolts carefully to avoid damaging the rubber nuts.
  • Ensure the bumper is supported while removing the last bolt to prevent it from falling.
  • Remove the bumper by pulling it away from the vehicle once all bolts are removed.

Prepare the bumper

  • Install the bumper mounting brackets onto the new bumper using 2 M8 x 20 flanged bolts.
  • Tighten the bolts until they are fully sealed into the rubber nuts.

Install the new bumper

  • Carefully align the new bumper with the mounting brackets.

Insert the front securing bolts

  • Tighten the front bolts until they are fully seated into the rubber nuts.

Insert mounting bracket bolts

  • Loctite and torque both bracket bolts to 20Nm to secure the bumper fully.
