4.3 Windscreen

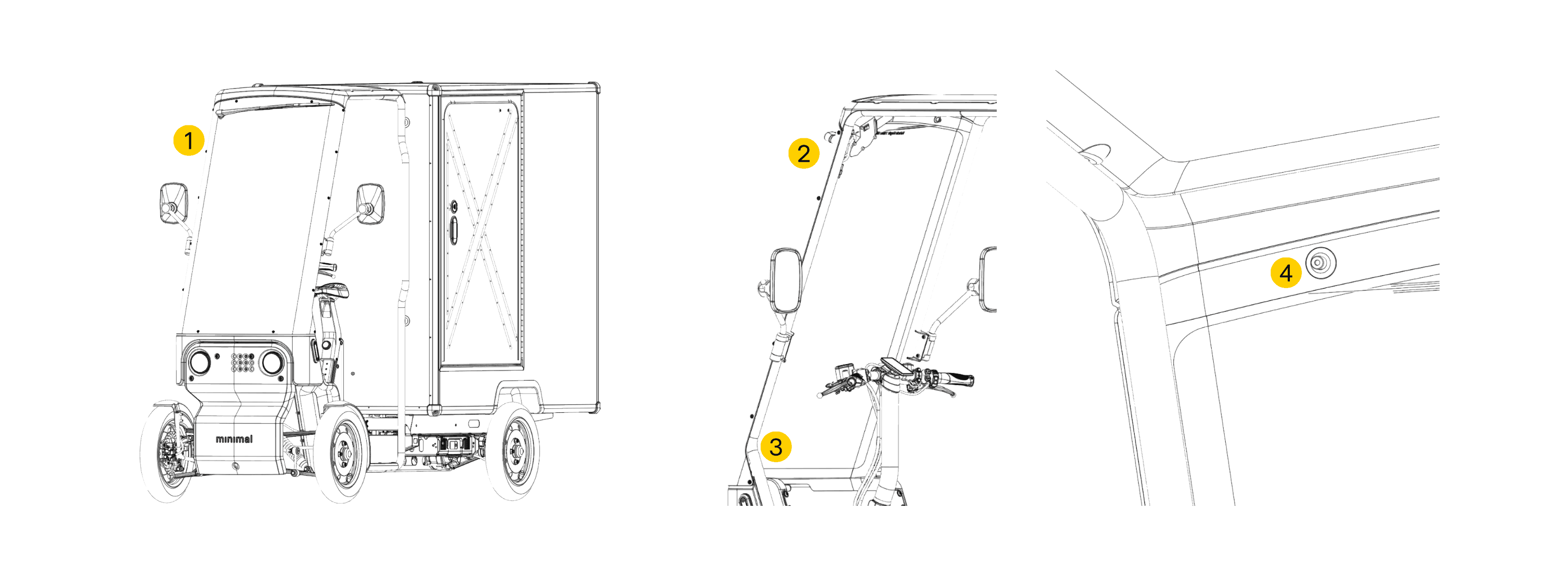

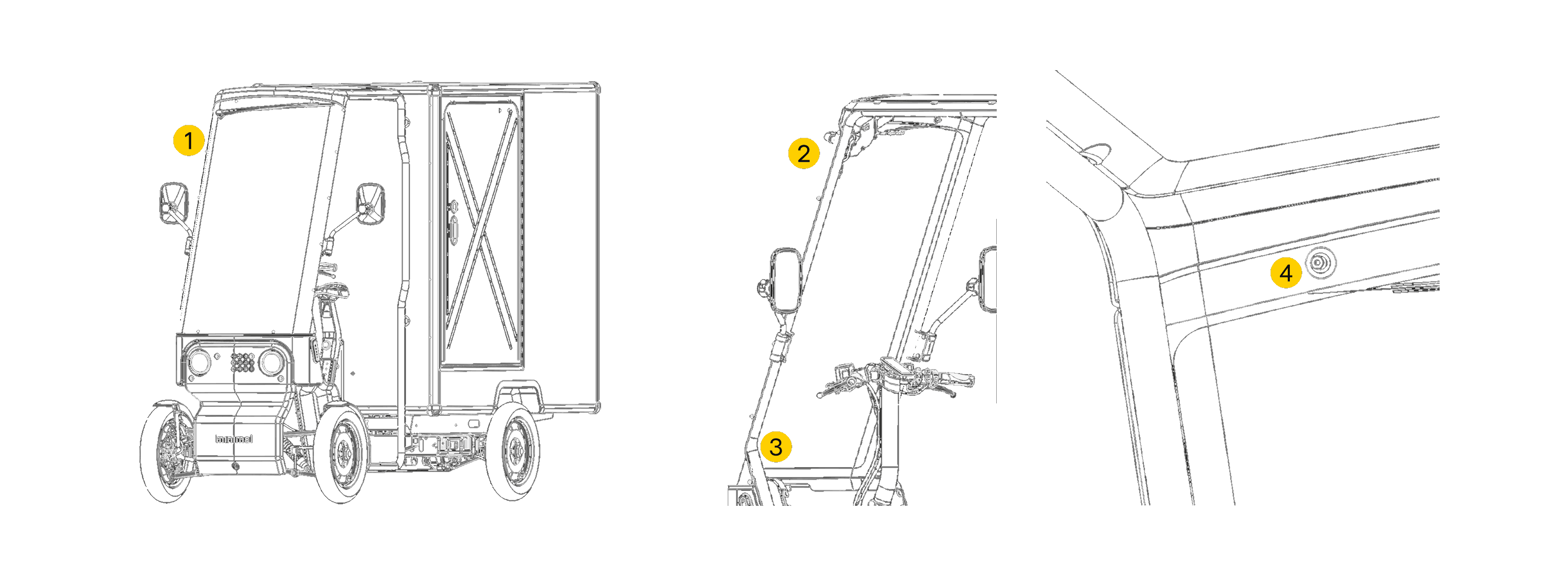

Remove the wiper arm

• Locate the securing nut at the base of the wiper arm.
• Use a 13mm Hexalobular socket to loosen and remove the nut.
• Carefully remove the wiper arm from the motor spindle.

Unscrew the windscreen

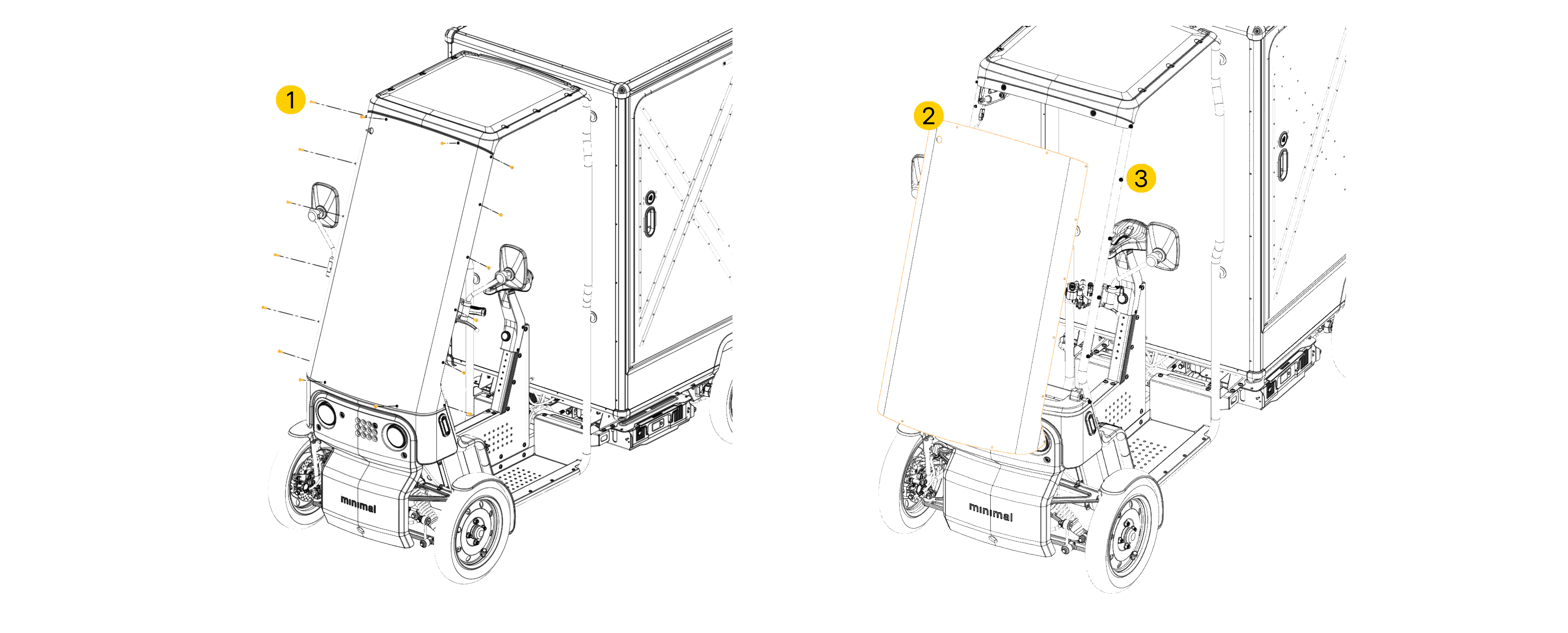

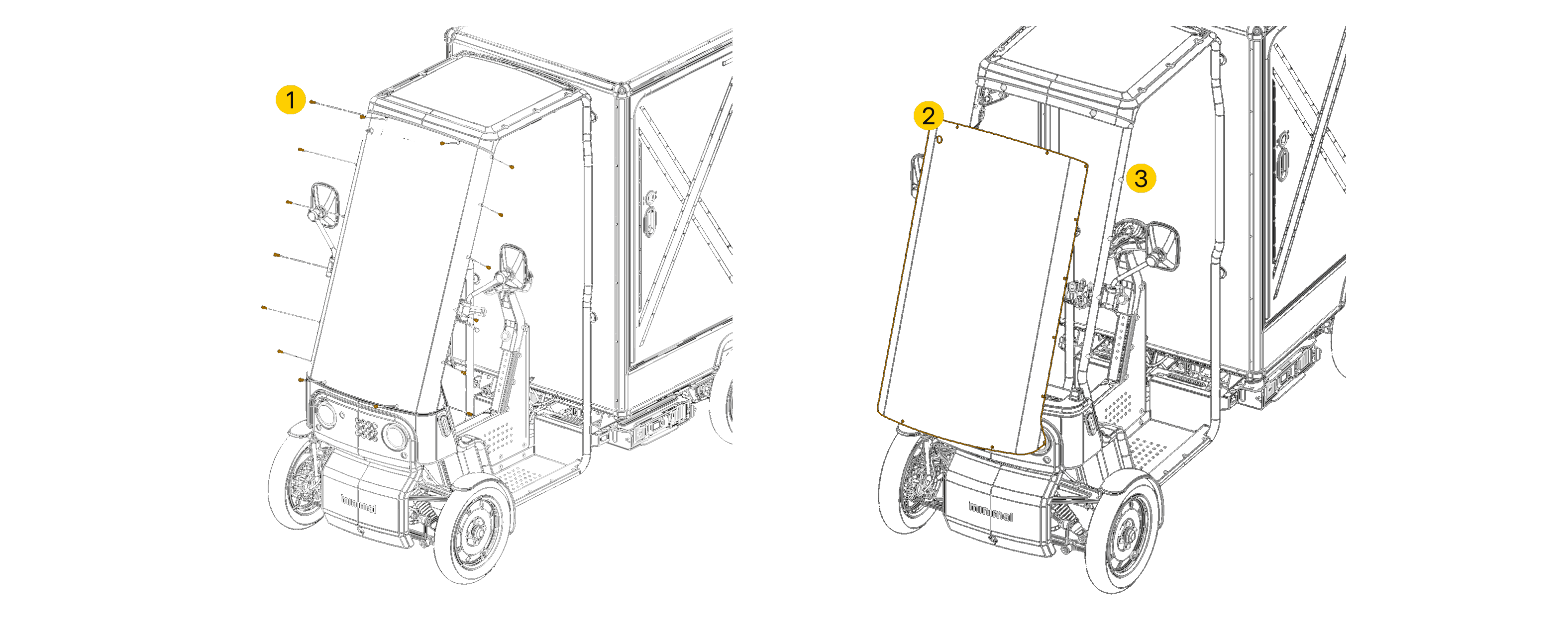

• Using a 4mm allen key, unscrew the 16 M5 hex socket cap screws securing the windscreen to the cabin hoops.

Removing the windscreen

• Using a suitable cutting tool, carefully cut through the sealant bonding the windscreen to the cabin hoops.
• Remove the windscreen from the front cabin hoops and dashboard.

Clean the cabin hoops

• Using a suitable cleaning agent, clean the cabin hoops where the windscreen was removed.
• Ensure all sealant residue is removed to provide a clean surface for reinstallation.

Preparing the new windscreen

• Use IPA cleaner to clean the bonding surface of the new windscreen.
• Fit new grommets to the windscreen holes.
• Apply SABA Sabatack 750 sealant evenly around the bonding surface of the windscreen.

Re-secure the windscreen

• Carefully position the new windscreen onto the cabin hoops and dashboard, making sure to align with the wiper spindle.
• Insert the M5 bolts including washers and tighten by hand until seated firmly into the rubber well nuts.

Reinstall the wiper arm

• Position the wiper arm back onto the motor spindle, ensuring the correct orientation parallel to the edge of the roof.
• Apply loctite 243 to the nut and torque to 29Nm using a 13mm Hexalobular socket.
