5.1 Saddle

The following section explains where to find, diagnose and replace the following damaged components.

Part Name	Part Number	Quantity
Saddle	PRT-000286	1
M8 x 20 T40 button head flange screw	PRT-001100	1
Seat rail clamp (if new part required)	PRT-000423	1

Tool Name	Attachment Type	Hardware Type to Remove	Quantity	Torque Spec
Torque Wrench	T40 Torx	M8 x 1.25 140 flanged screw	1	29Nm (loctite 243)

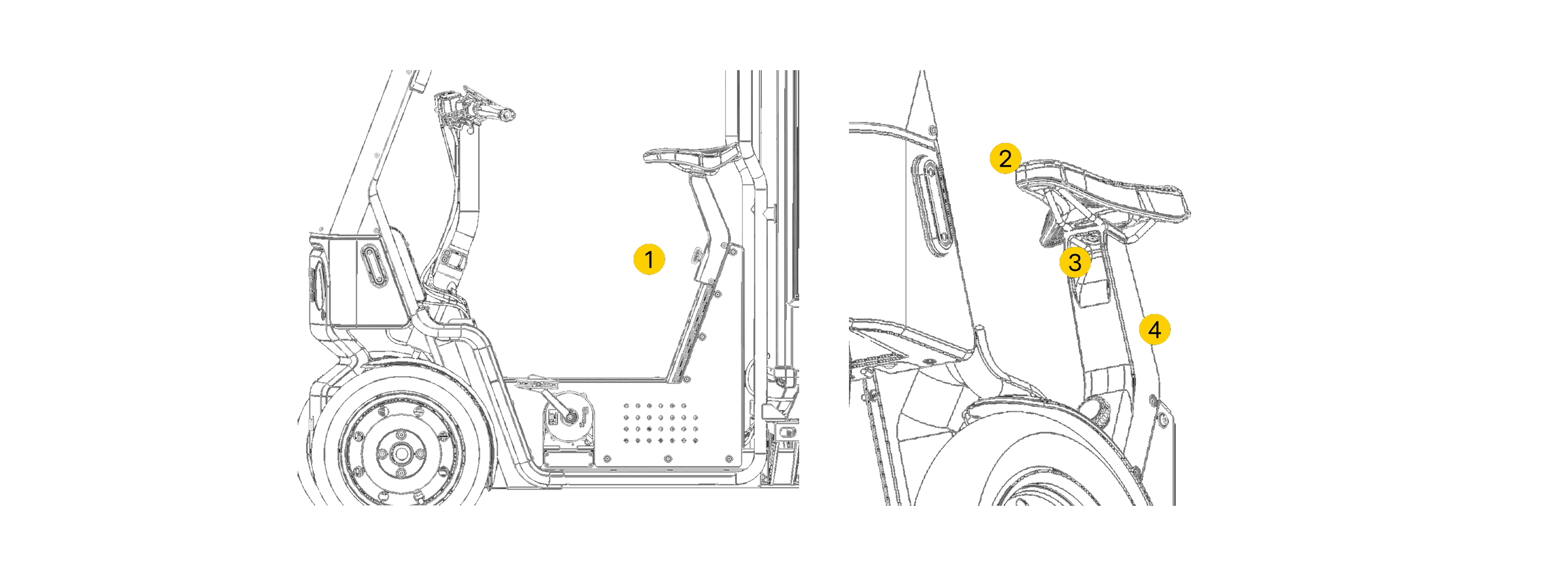

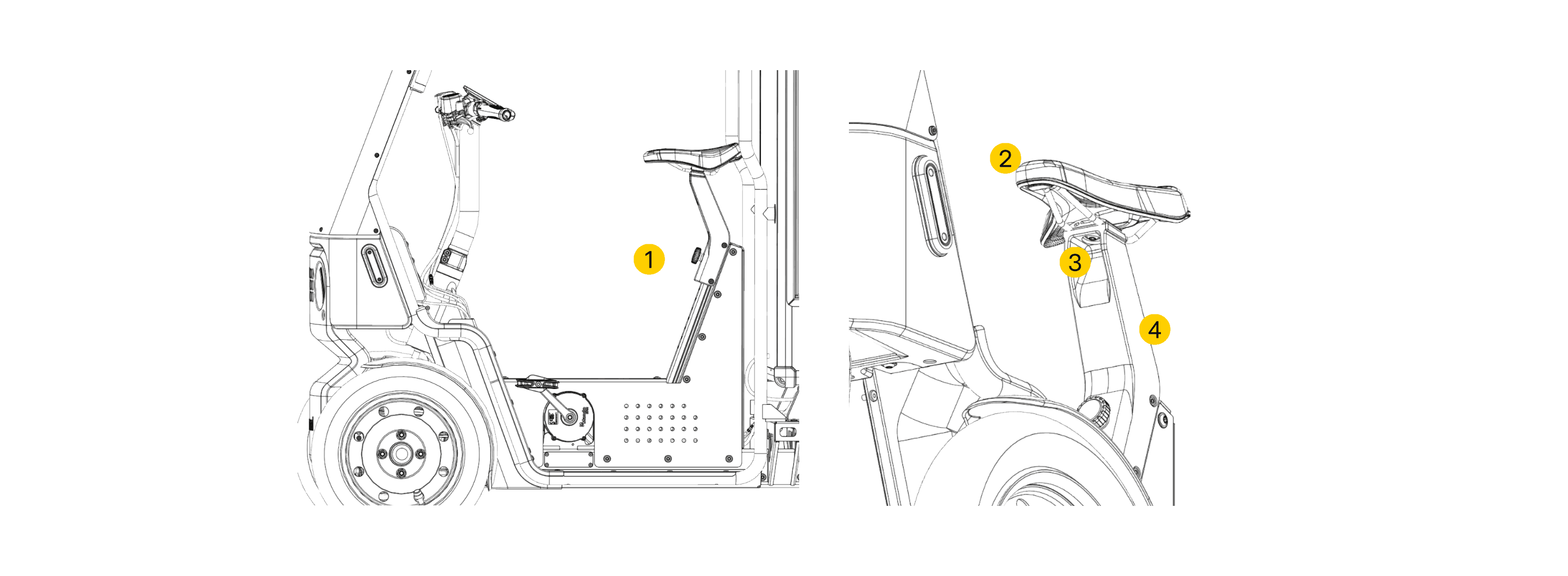

Locate the saddle

Remove the securing bolt

Using a T40 Torx bit, unscrew the bolt fully until the top securing clamp is released.
Keep hold of the saddle while removing the bolt to prevent it from falling.

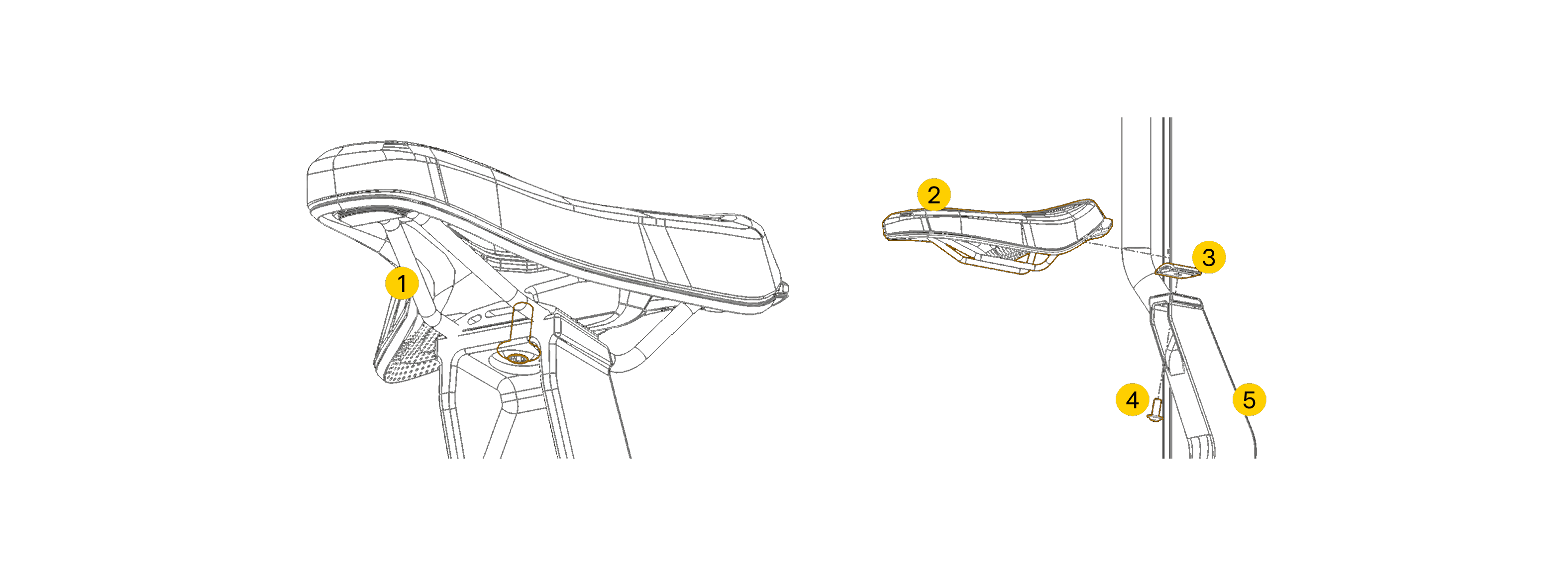

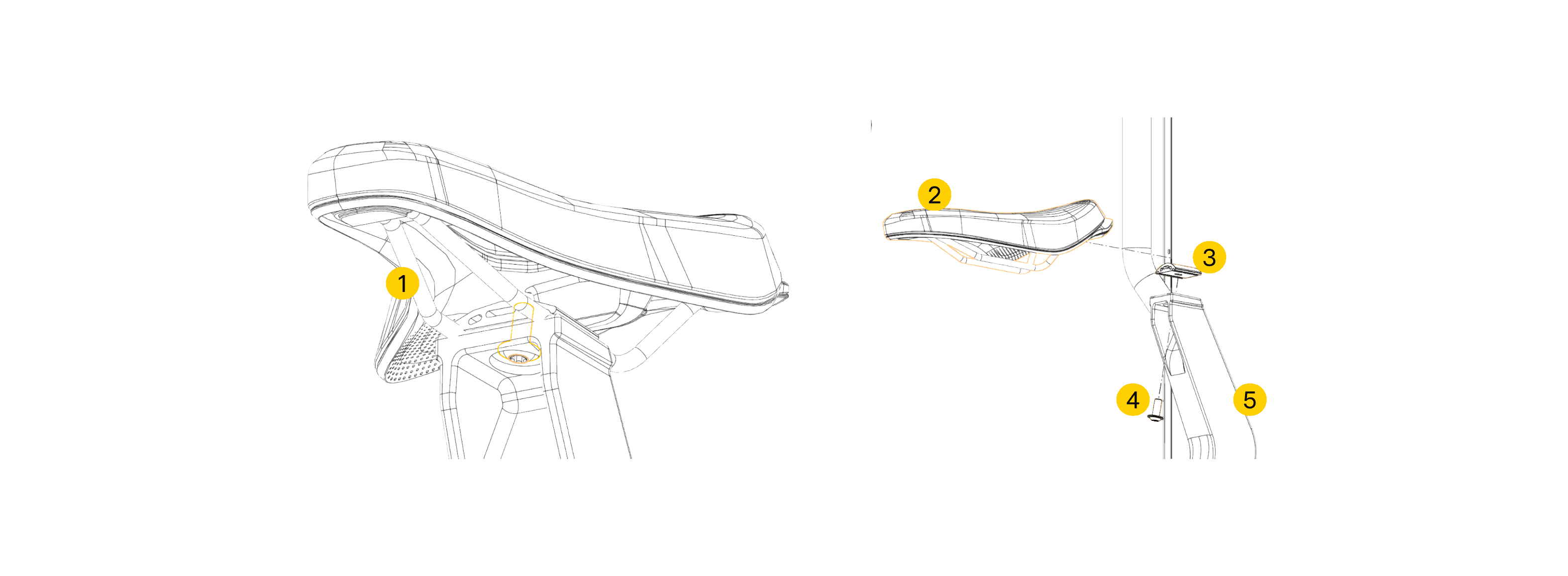

Remove and replace the saddle

Ensure the saddle is removed carefully so that the securing clamp and nut are not lost.

Position the saddle comfortably

Adjust the saddle until it sits in a preferred riding position.
Ensure the saddle rails are correctly seated in the adjustment rail and align with the guide notches.

Secure the saddle

Caution

Slips & Loss of Vehicle Control - Loose saddles may cause riders to lose control of the vehicle and may cause injury to operators and the public.
