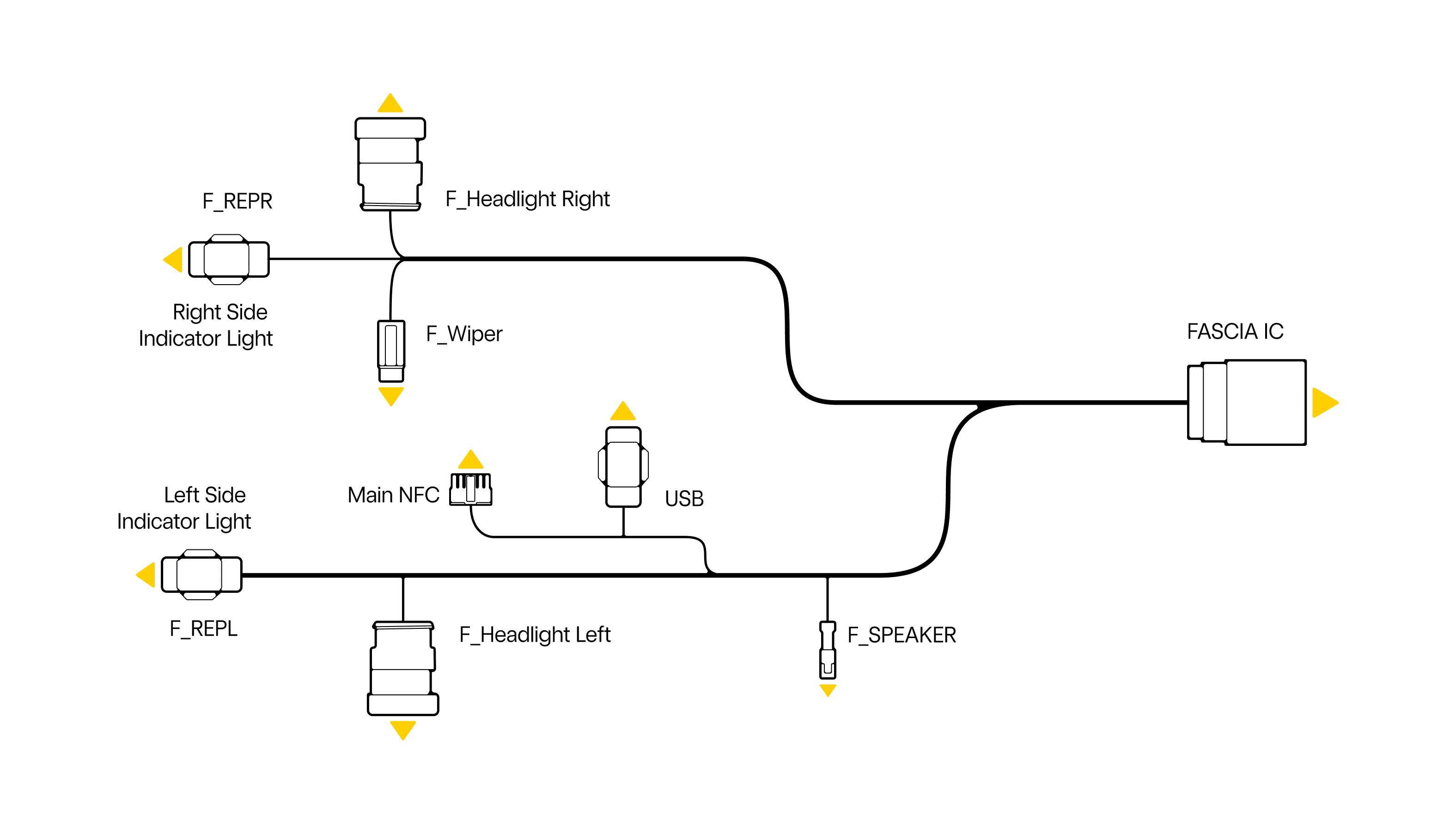

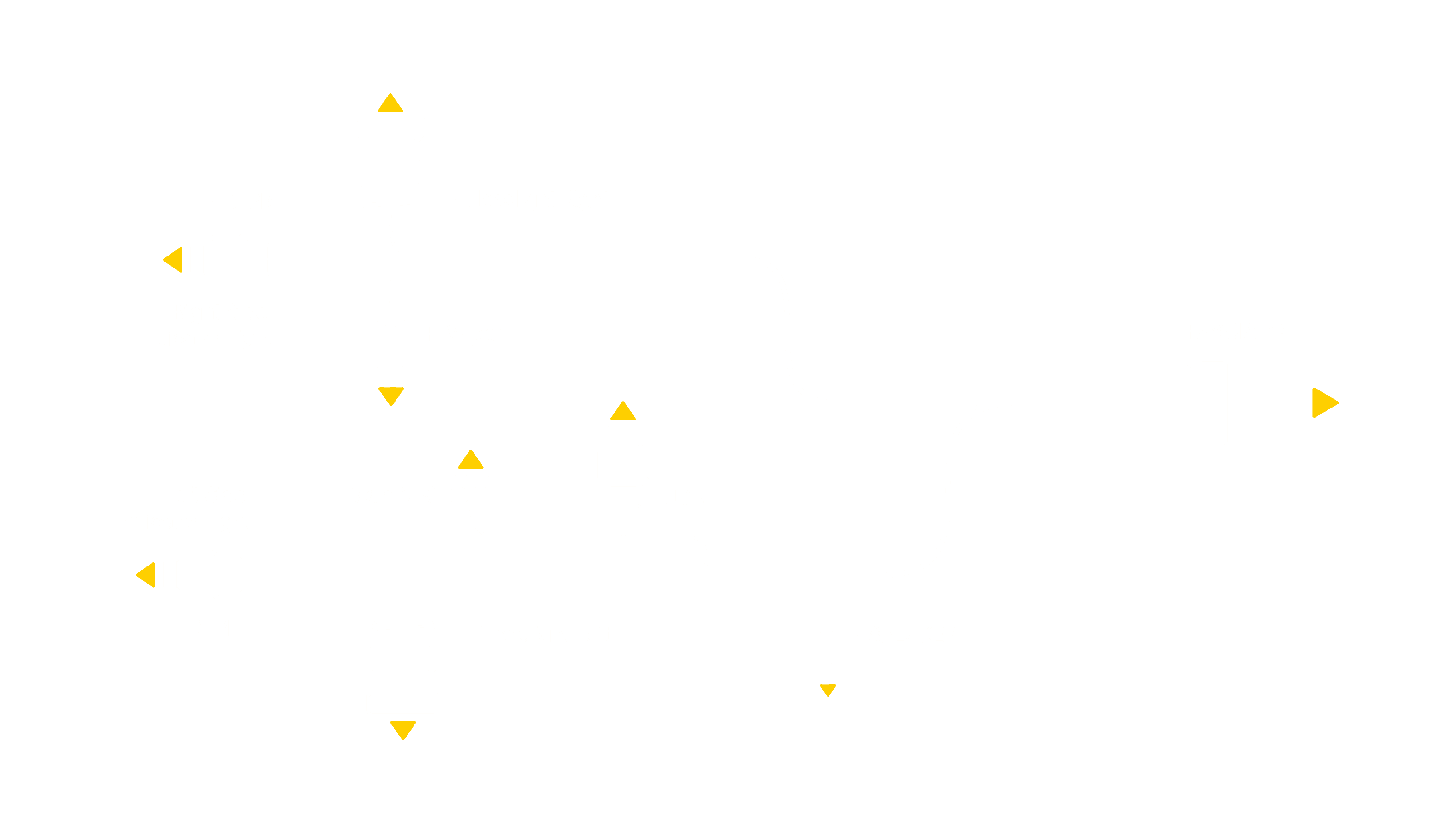

7.2 Front Fascia Harness

Caution

Do not remove or tamper with any connectors or harnesses unless the vehicle has been properly turned off with the batteries removed.

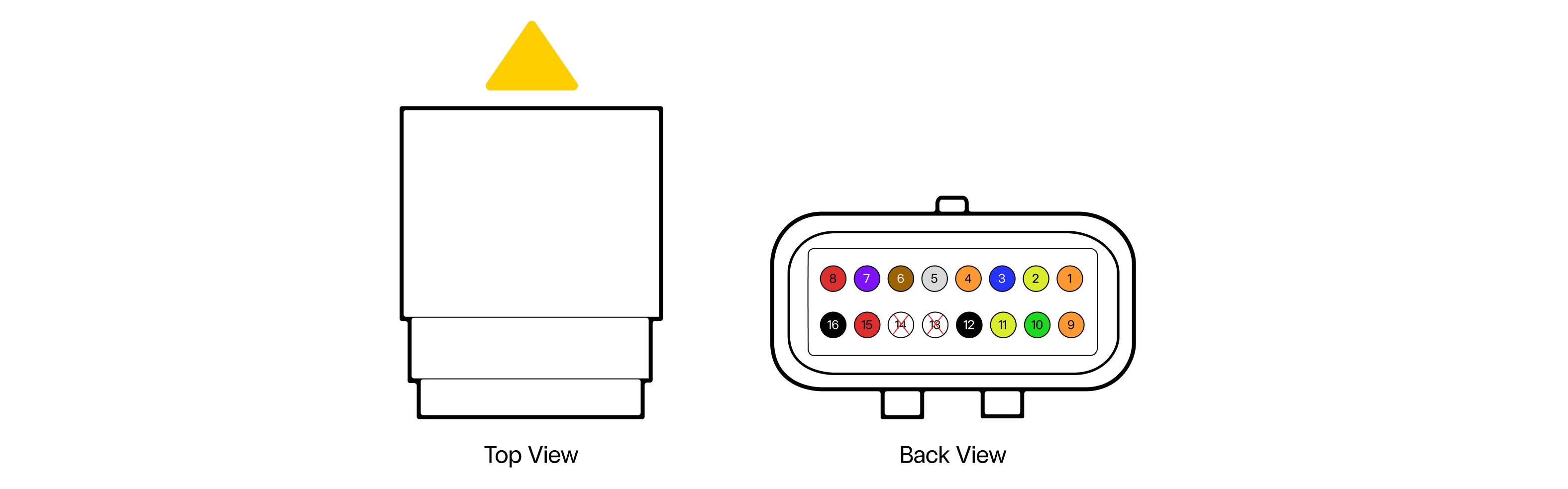

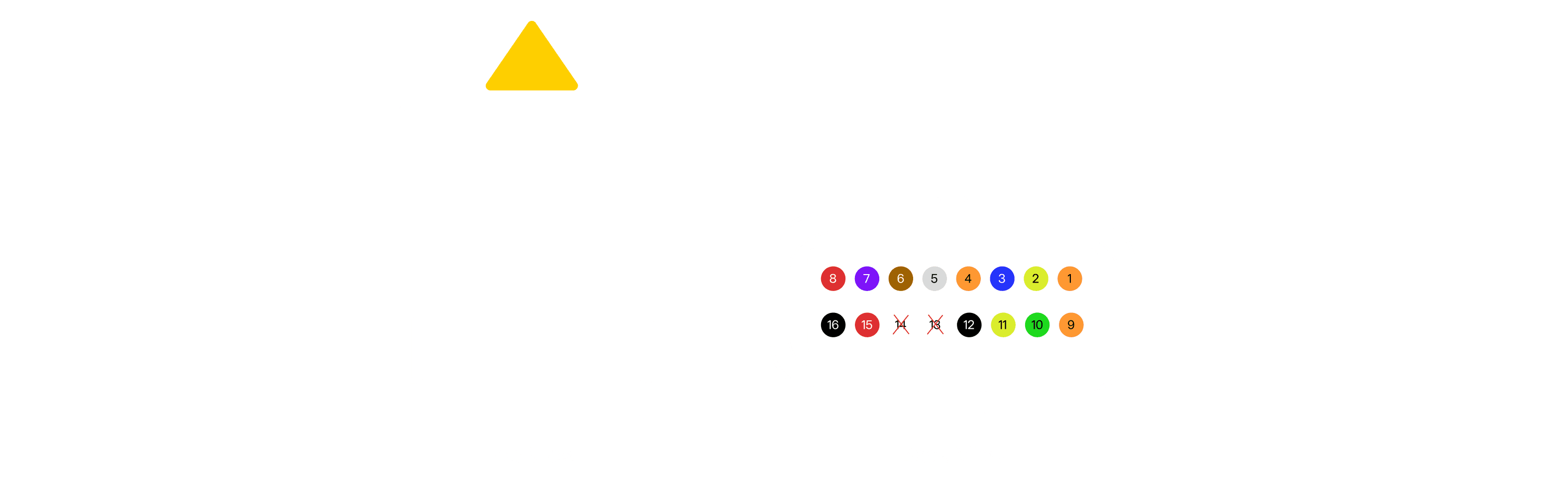

Fascia Inter Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Orange	AWG24	SP-006/X	LOW_BEAM_OUT	Low beam headlight signal outbound
2	Yellow	AWG24	SP-003/X	TURN_LEFT_OUT	Left indicator signal outbound
3	Blue	AWG22	SP-005/X	DRL_OUT	Daytime running light signal outbound
4	Orange	AWG24	SP-004/X	TURN_RIGHT_OUT	Right indicator signal outbound
5	Grey	AWG20	F_SPEAK/1	AUDIO_FRONT_N	Audio front negative connection
6	Brown	AWG20	F_SPEAK/2	AUDIO_FRONT_P	Audio front positive connection
7	Violet	AWG22	USB/1	12V_USB	12V power to USB port
8	Red	AWG24	MAIN_NFC/12	12V_NFC	12V power to NFC security module
9	Orange	AWG24	MAIN_NFC/7	LOCK_IGNITION	Lock ignition signal inbound
10	Green	AWG24	SP-026/X	CAN3H	CAN bus line 3 high signal
11	Yellow	AWG24	MAIN_NFC/3	CAN3L	CAN bus line 3 low signal
12	Black	AWG18	SP-007/X	GND	Ground connection
13	---	---	---	---	---
14	---	---	---	---	---
15	Red	AWG20	F_WIPER/1	12V_WIPER	12V power to wiper motor
16	Black	AWG20	F_WIPER/2	GND	Wiper motor ground connection

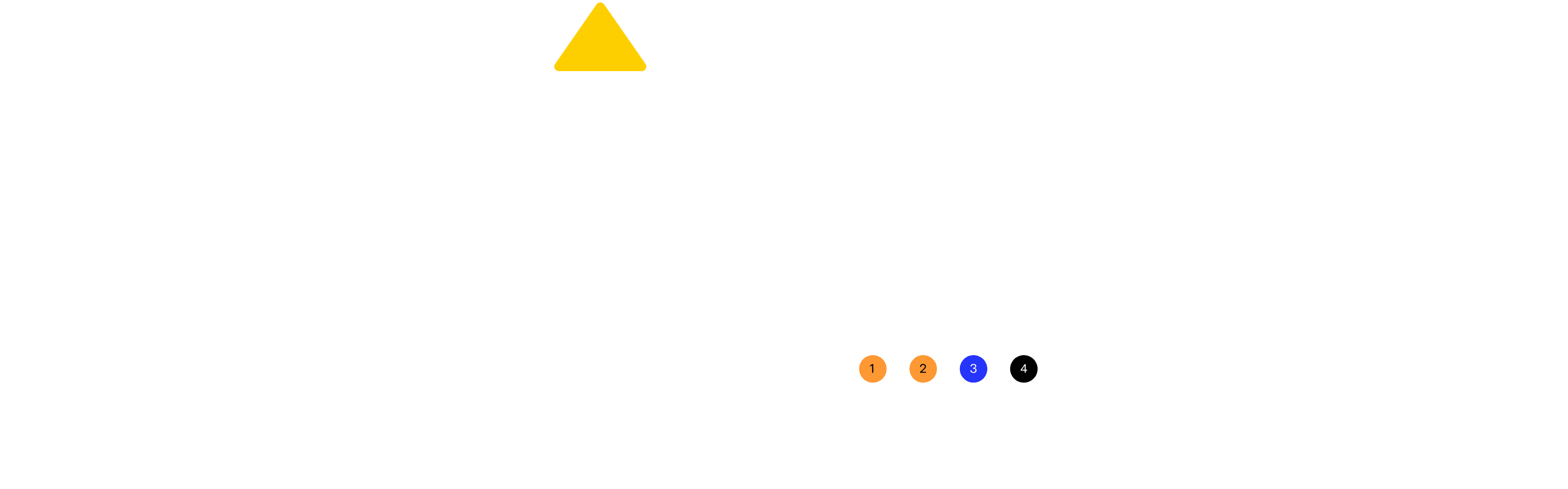

Front Right Headlight Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Orange	AWG24	SP-006x / x	Low Beam Out	Low beam signal outbound
2	Orange	AWG24	SP-004x / x	Turn Right Out	Right turn indication signal outbound
3	Blue	AWG24	SP-005x / x	DRL Out	Day time running lights signal outbound
4	Black	AWG24	SP-007x / x	GND	Ground

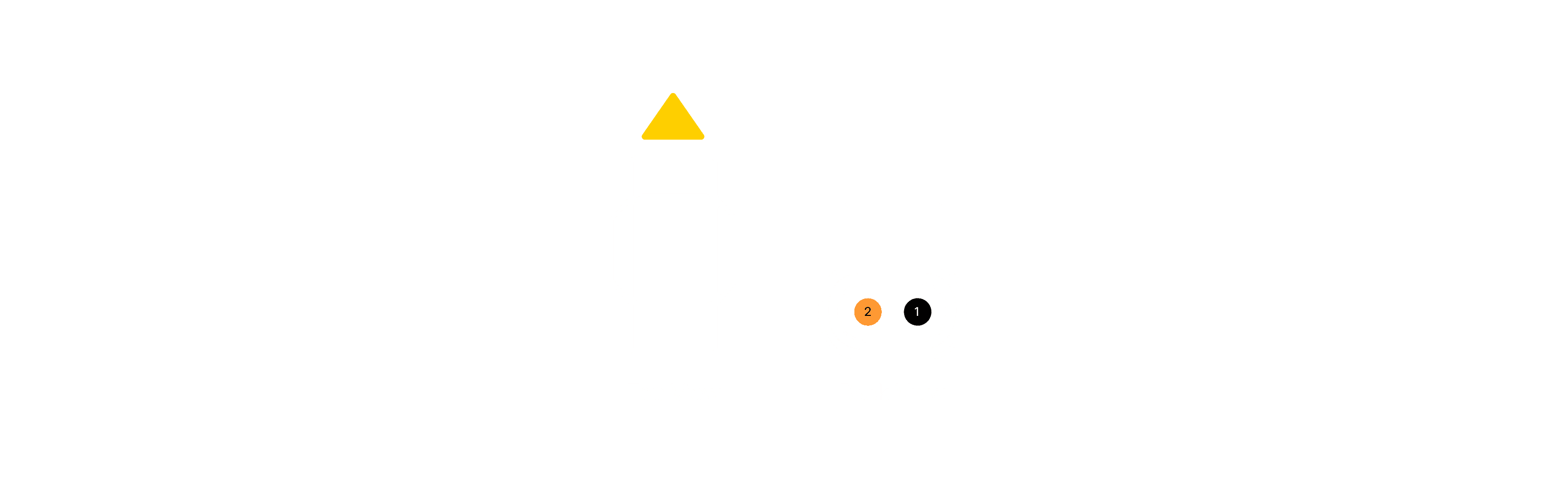

Front Right Repeater Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Black	AWG24	SP-007x	GND	Ground
2	Orange	AWG24	SP-004x	Turn Right Out	Right turn indication signal outbound

Front Wiper Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Red	AWG20	FASCIA_IC/15	12V Wiper	12V power to wiper motor
2	Black	AWG20	FASCIA_IC/16	GND	Ground

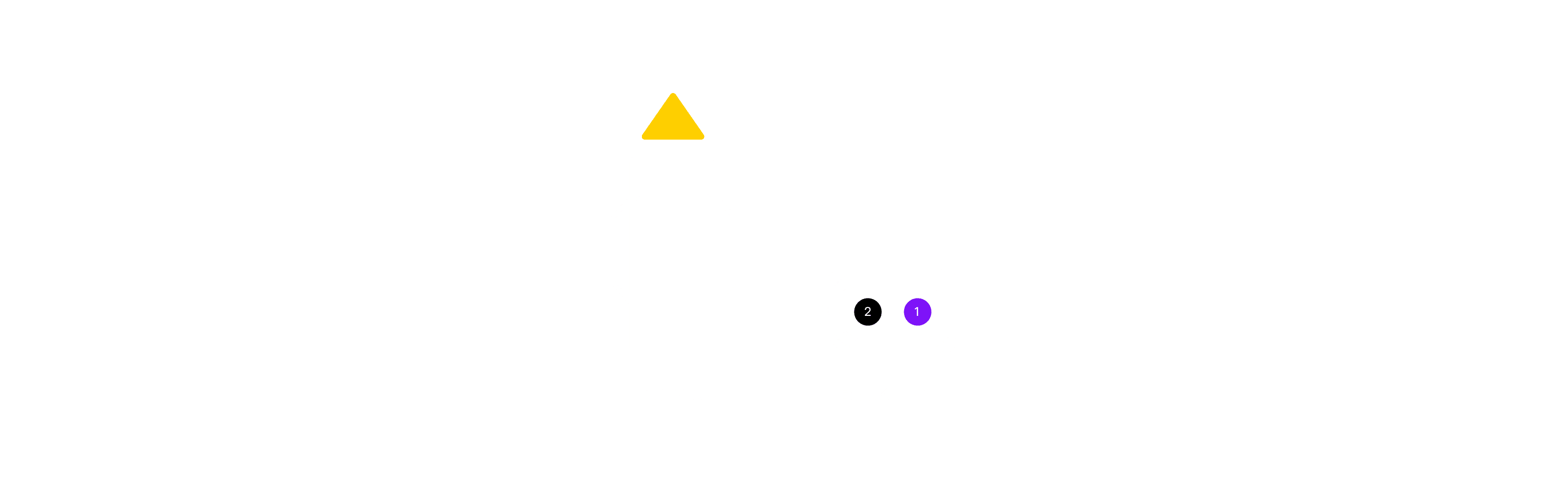

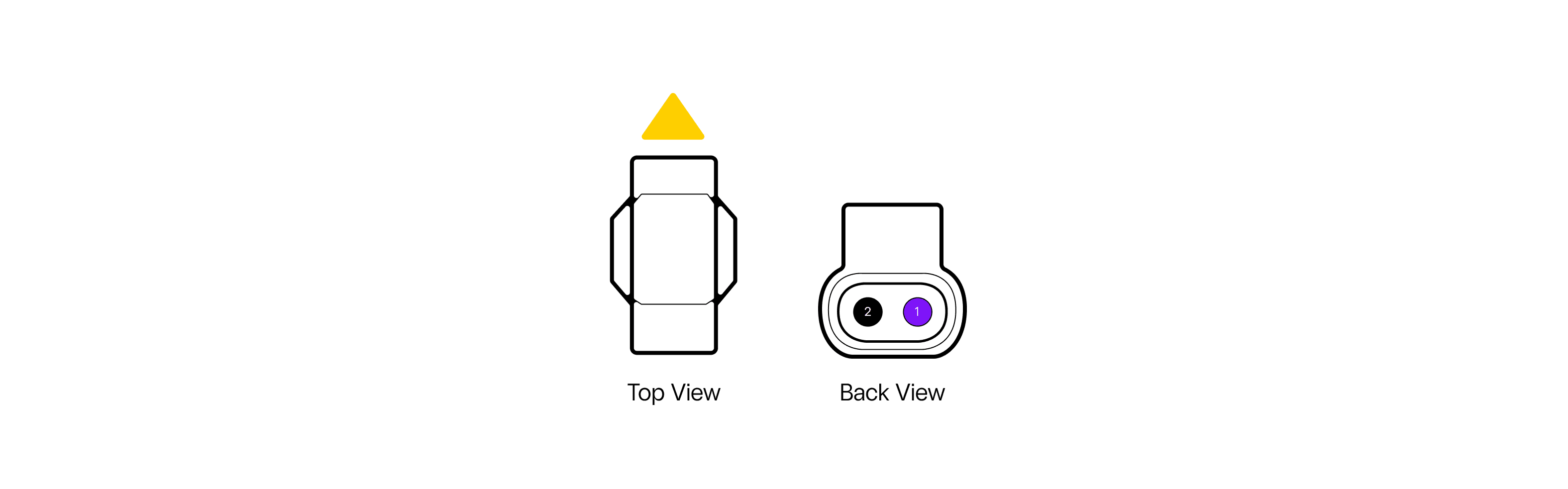

USB Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Violet	AWG22	Fascia IC/7	12V USB	12V supply to USB
2	Black	AWG22	SP-007x	GND	Ground

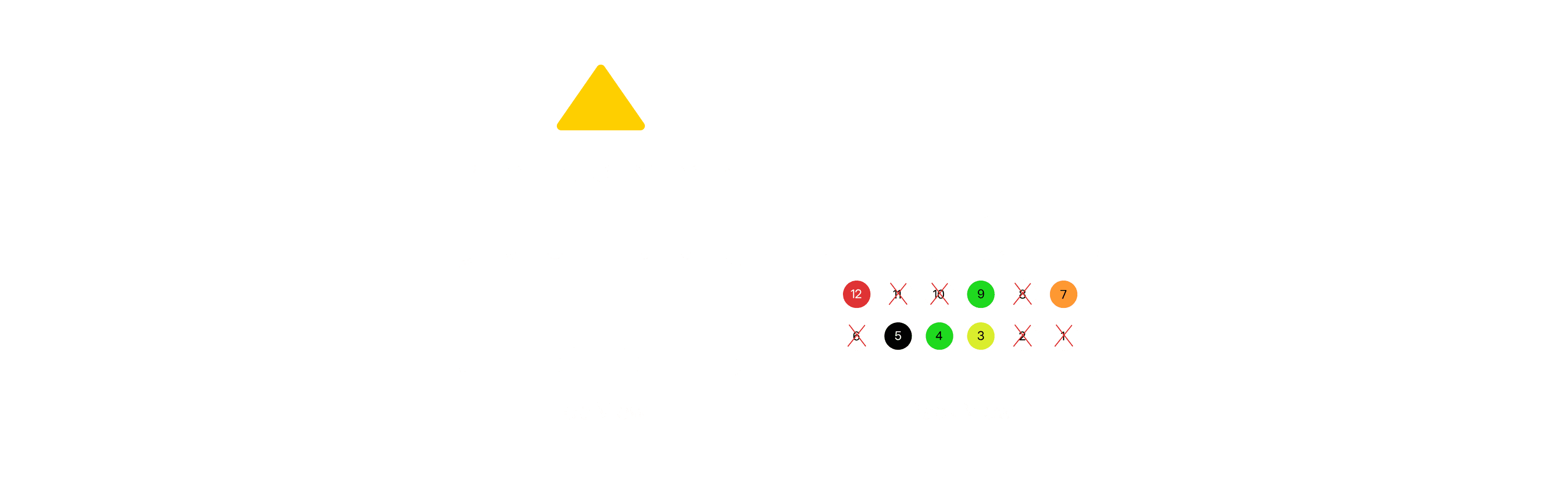

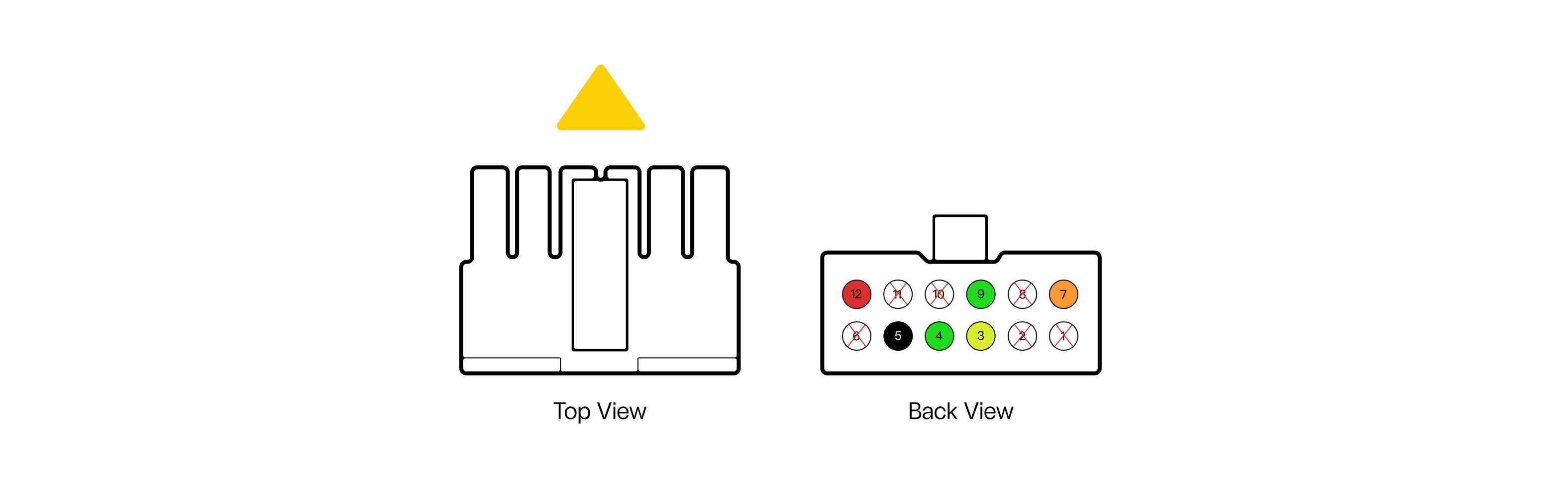

Main NFC

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	---	---	---	---	---
2	---	---	---	---	---
3	Yellow	AWG24	Fascia IC/11	CAN3L	CAN bus 3 signals low
4	Green	AWG24	SP-026x	CAN3H	CAN bus 3 signals high
5	Black	AWG24	SP-007x	GND	Ground
6	---	---	---	---	---
7	Orange	AWG24	Fascia IC/9	Lock Ignition	Ignition lock inbound signal
8	---	---	---	---	---
9	Green	AWG24	SP-026x	CAN3H	CAN bus 3 signals high
10	---	---	---	---	---
11	---	---	---	---	---
12	Red	AWG24	Fascia IC/8	12V NFC	12V power to main NFC security module on dashboard

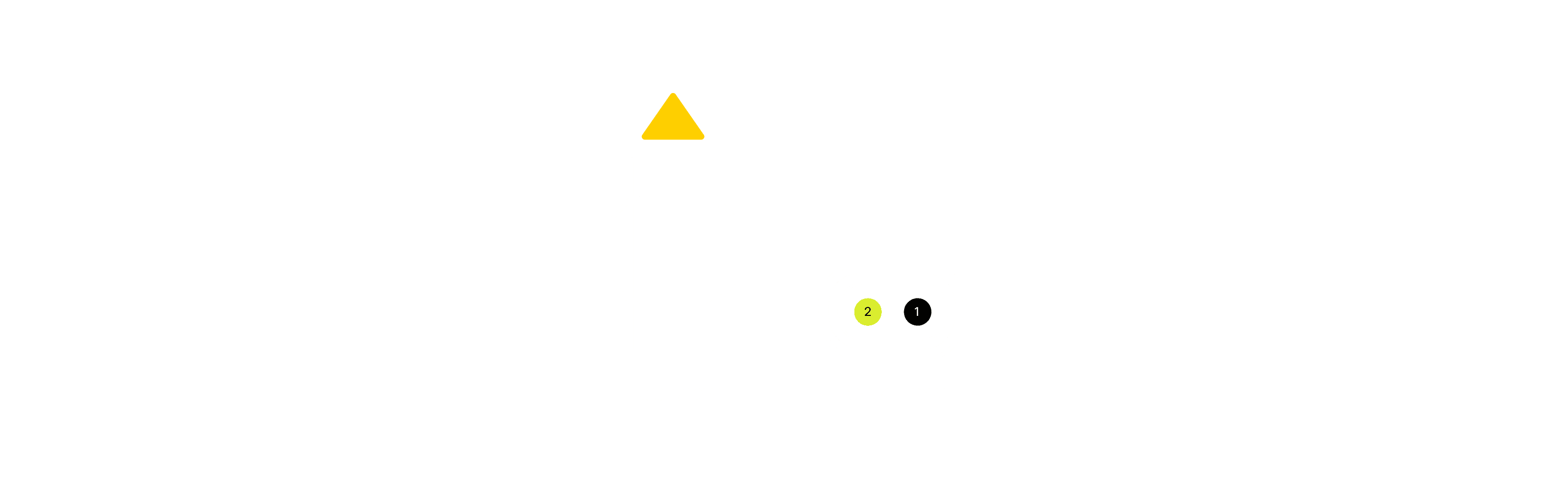

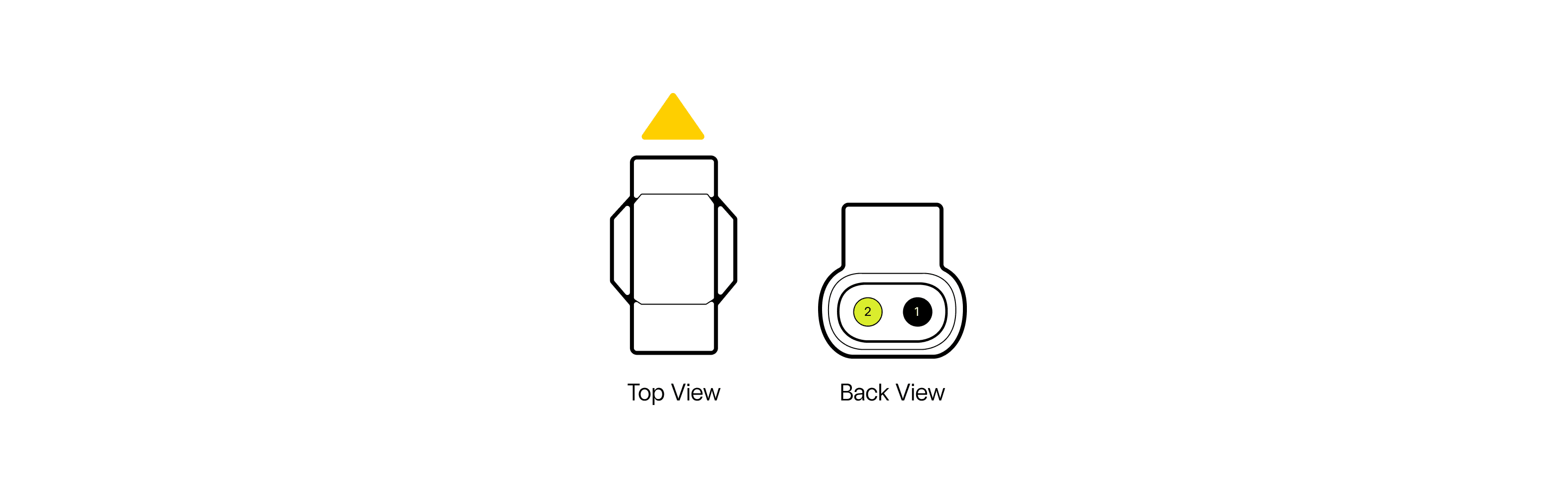

Front Left Repeater Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Black	AWG24	SP-007x	GND	Ground
2	Yellow	AWG24	SP-003x	Turn Left Out	Left turn indication signal outbound

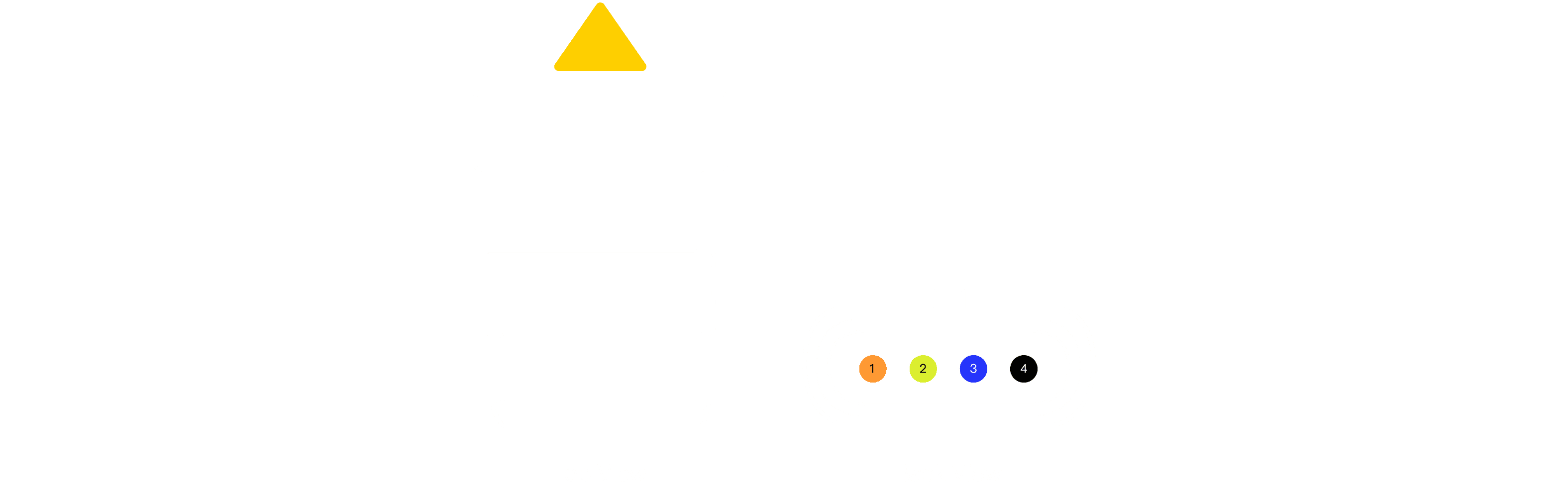

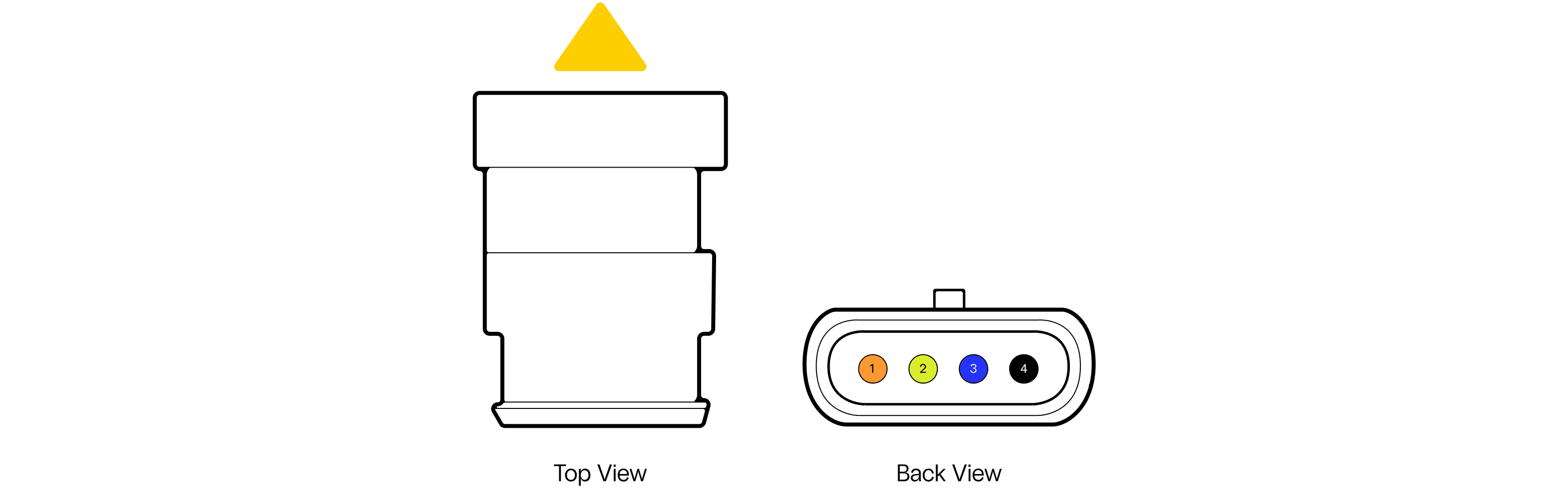

Front Left Headlight Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Orange	AWG24	SP-006x	Low Beam Out	Low beam signal outbound
2	Yellow	AWG24	SP-003x	Turn Left Out	Left turn indication signal outbound
3	Blue	AWG24	SP-005x	DRL Out	Day time running lights signal outbound
4	Black	AWG24	SP-007x	GND	Ground

Front Speaker Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Grey	AWG20	Fascia IC/5	Audio Front N	Audio connection to negative terminal
2	Brown	AWG20	Fascia IC/6	Audio Front P	Audio connection to positive terminal
