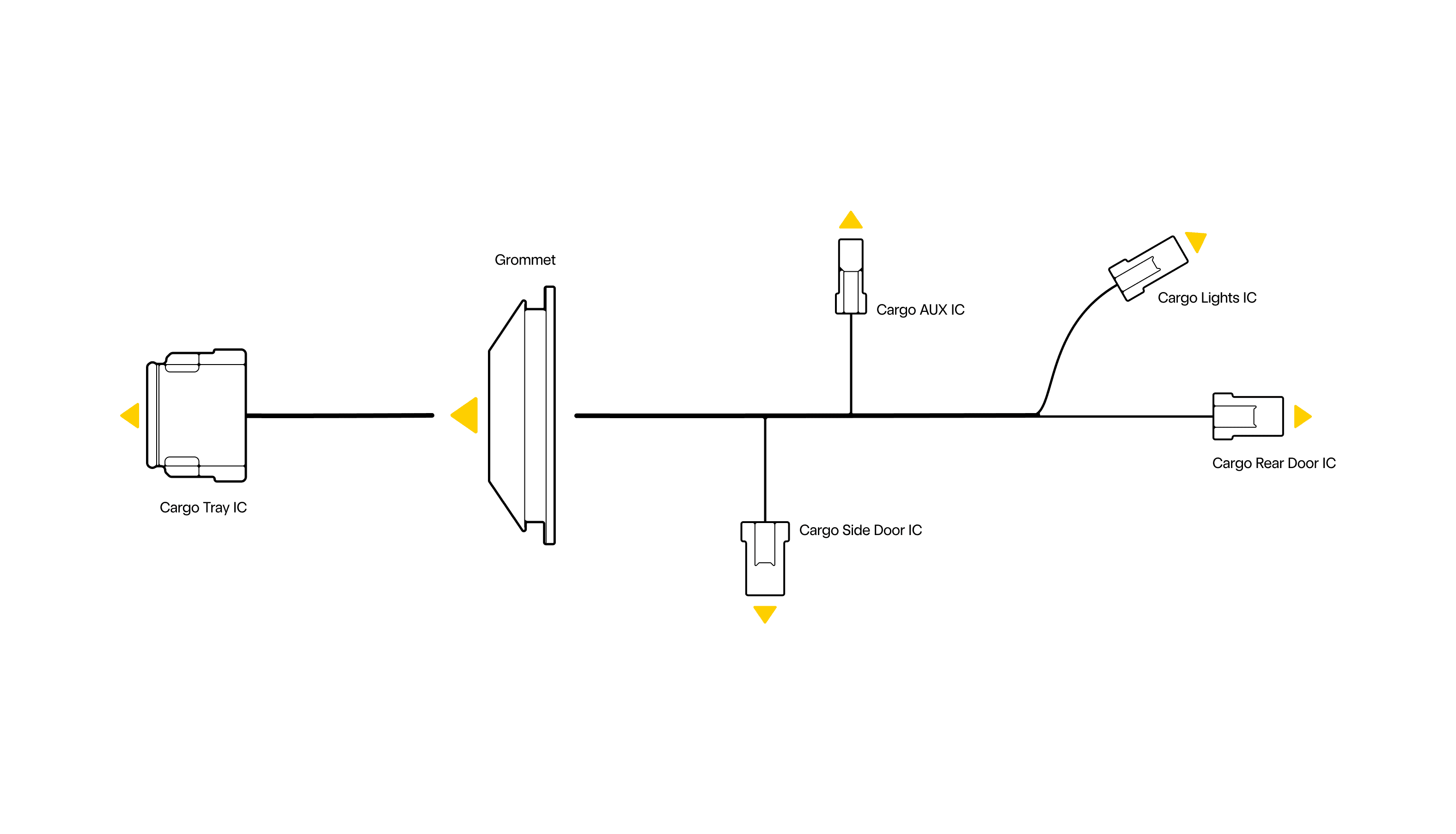

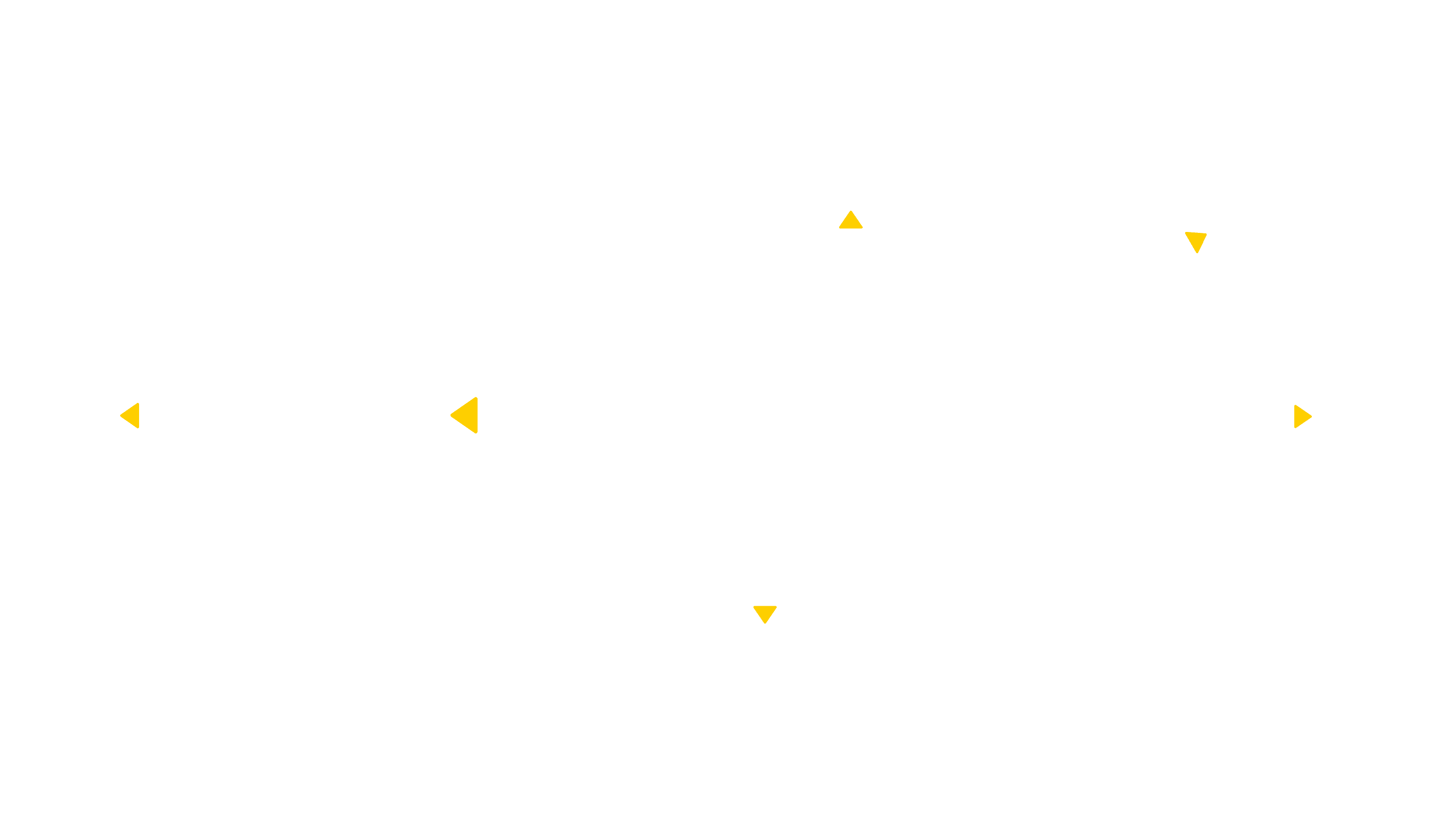

7.3 Cargo Box Harness

Caution

Do not remove or tamper with any connectors or harnesses unless the vehicle has been properly turned off with the batteries removed.

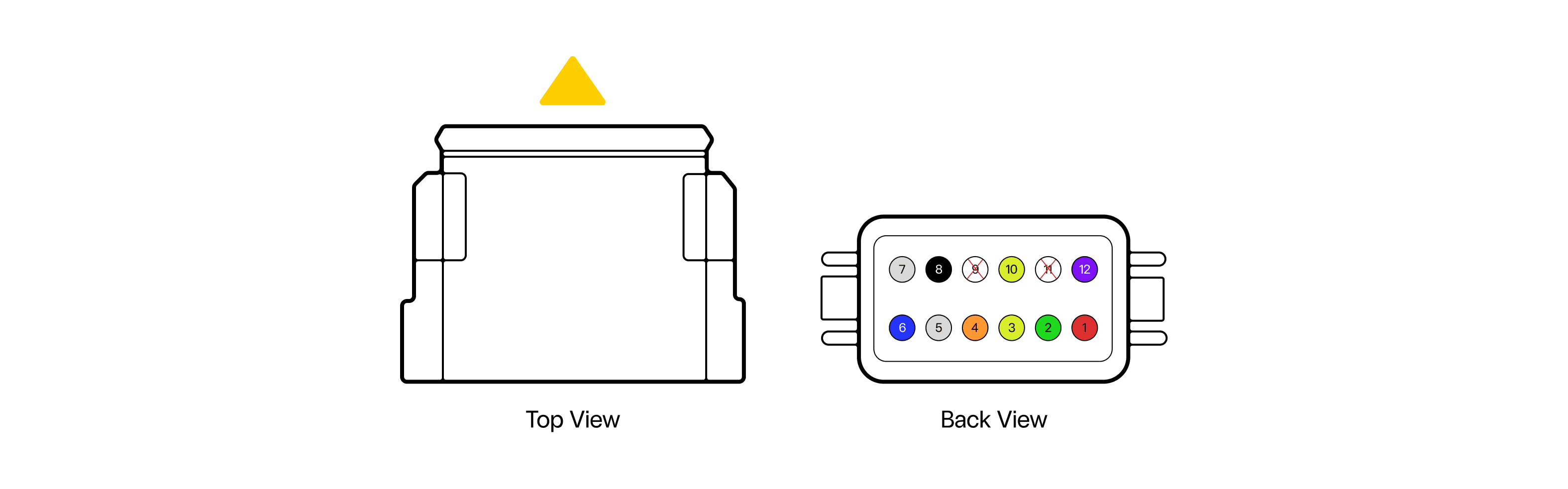

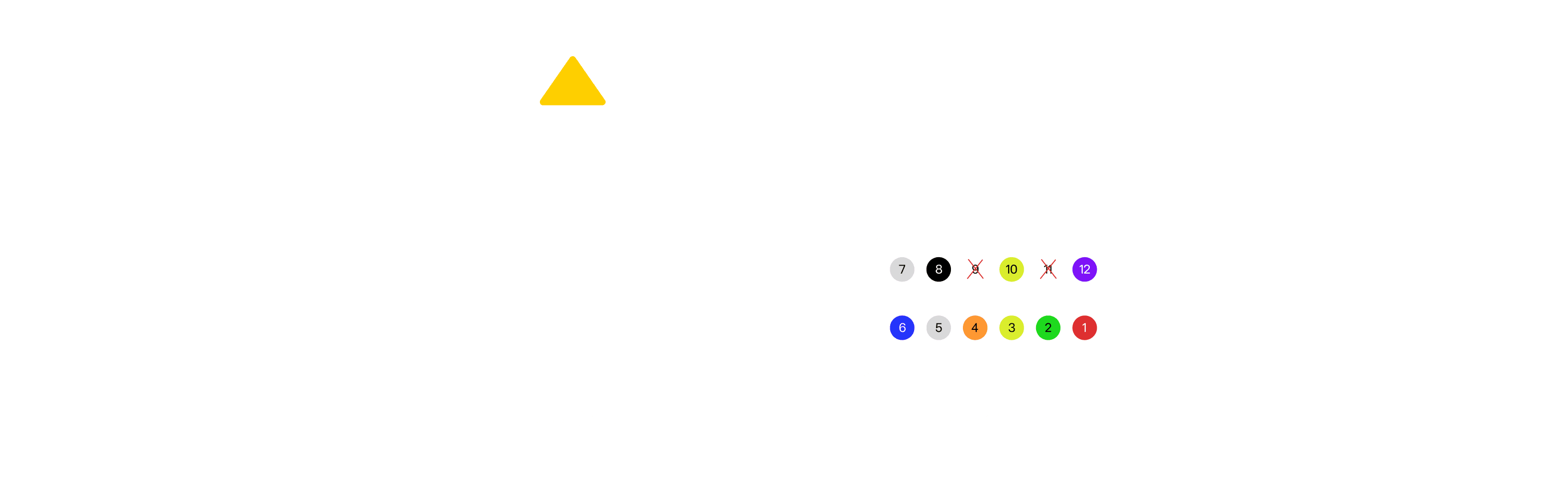

Cargo Tray Inter-Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Red	AWG18	SP-020x	Cargo 12V	12V supplied to cargo box
2	Green	AWG22	Cargo Side Door IC/2	CAN3H	CAN bus 3 signal high
3	Yellow	AWG22	Cargo Lights IC/1	Turn Left Out	Left turn indication signal outbound
4	Orange	AWG22	Cargo Lights IC/2	Turn Right Out	Right turn indication signal outbound
5	Grey	AWG22	Cargo Lights IC/3	Brake Light Out	Brake light signal outbound
6	Blue	AWG22	Cargo Lights IC/4	DRL Out	Day time running lights outbound
7	White	AWG22	Cargo Lights IC/5	Reverse Light Out	Reverse cargo box lights outbound
8	Black	AWG18	SP-021x	GND	Ground
9	---	---	---	---	---
10	Yellow	AWG22	Cargo Side Door IC/3	CAN3L	CAN bus 3 signal low
11	---	---	---	---	---
12	Violet	AWG22	Cargo AUX IC/2	Cargo AUX 12V	12V supply to cargo box auxiliaries

Cargo AUX Inter-Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Violet	AWG22	Cargo Tray IC/12	Cargo AUX 12V	12V supply to cargo box auxiliaries
2	Black	AWG22	SP-021x	GND	Ground

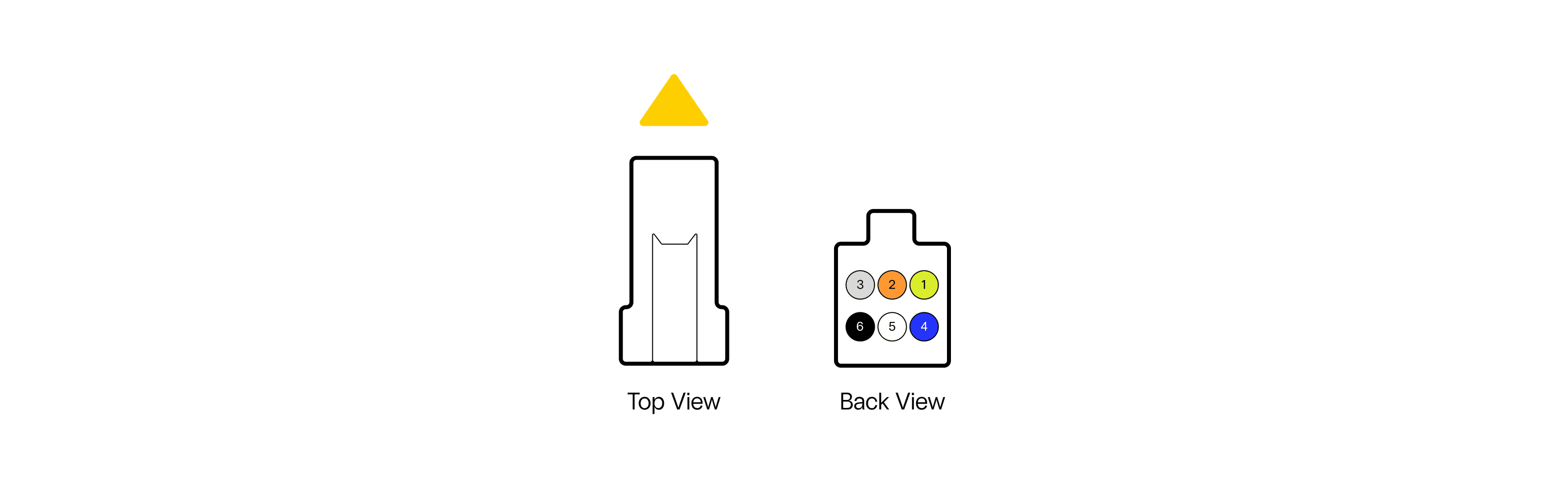

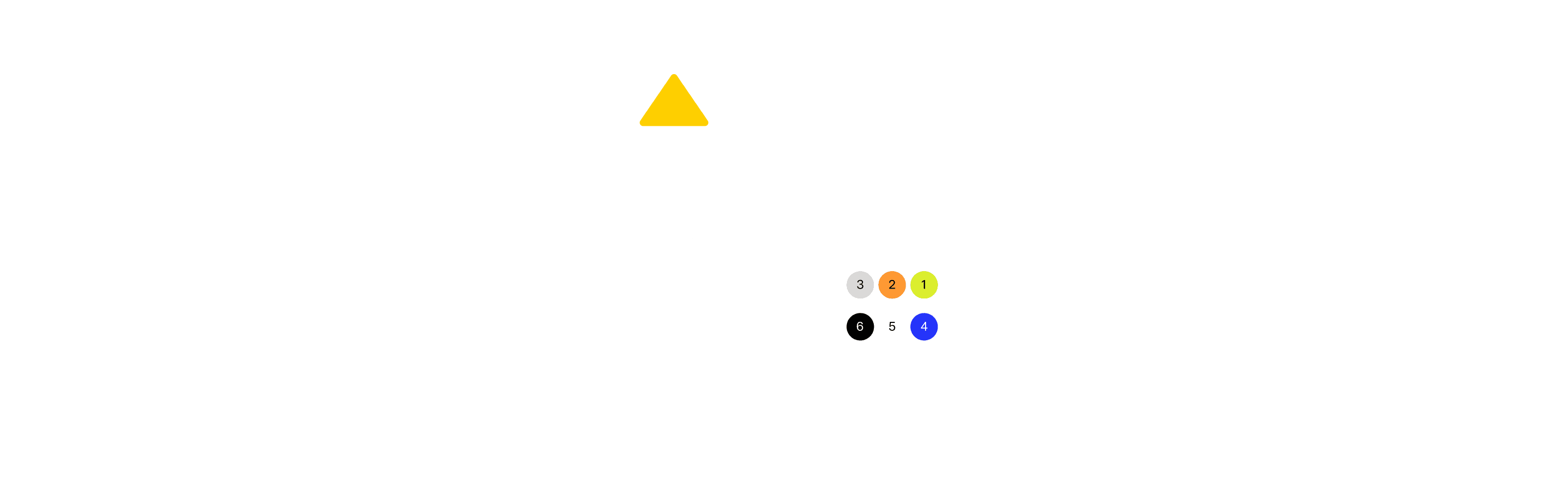

Cargo Lights Inter-Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Yellow	AWG22	Cargo Tray IC/3	Turn Left Out	Left turn indication signal outbound
2	Orange	AWG22	Cargo Tray IC/4	Turn Right Out	Right turn indication signal outbound
3	Grey	AWG22	Cargo Tray IC/5	Brake Light Out	Brake light signal outbound
4	Blue	AWG22	Cargo Tray IC/6	DRL Out	Day time running lights outbound
5	White	AWG22	Cargo Tray IC/7	Reverse Light Out	Reverse cargo box lights outbound
6	Black	AWG22	SP-021X	GND	Ground

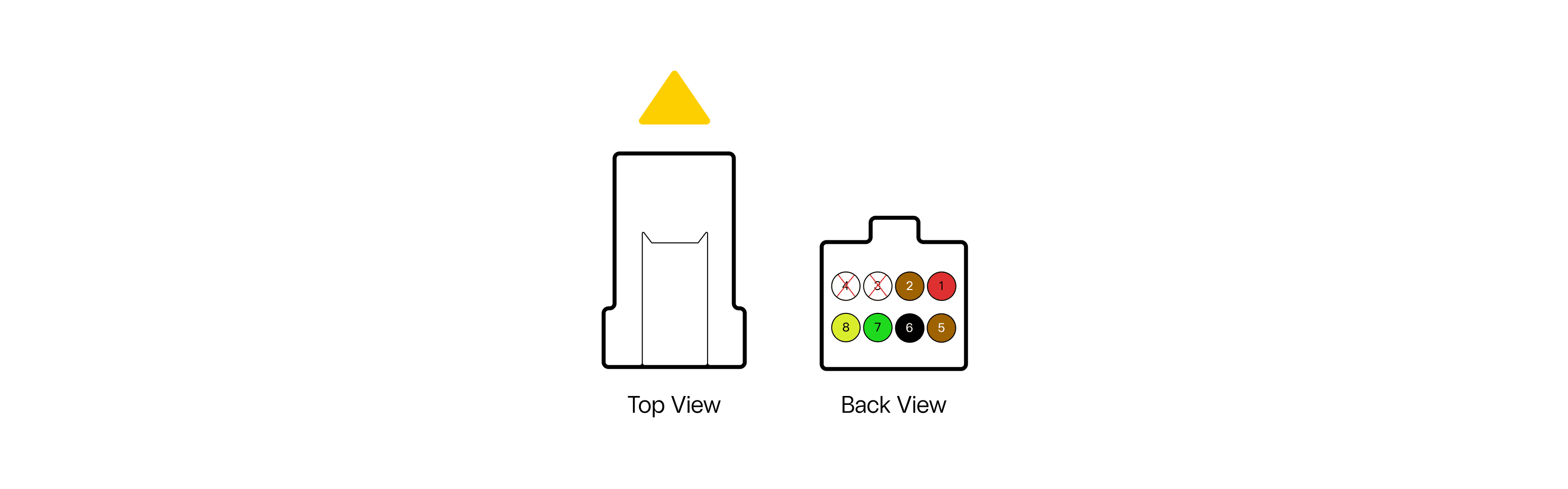

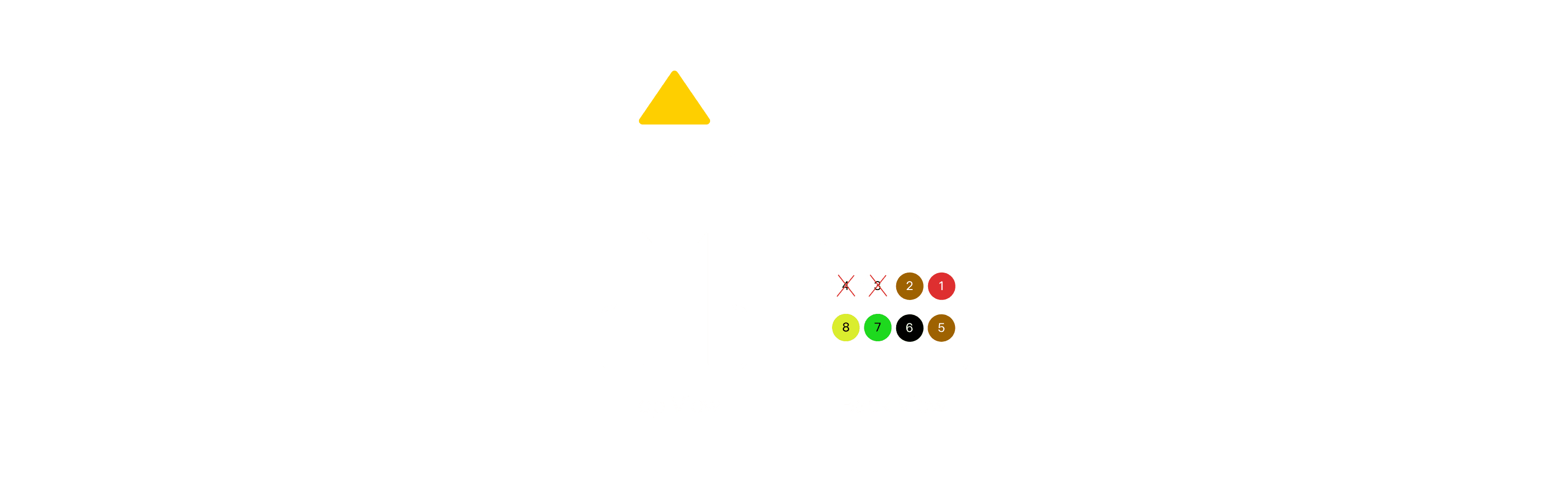

Cargo Rear Door Inter-Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Red	AWG22	SP-020x	Cargo 12V	12V cargo box supply
2	Brown	AWG22	Cargo Rear Door IC/5	Door CAN Term	CAN bus 3 termination point
3	---	---	---	---	---
4	---	---	---	---	---
5	Brown	AWG22	Cargo Rear Door IC/2	Door CAN Term	CAN bus 3 termination point
6	Black	AWG22	SP-021x	GND	Ground
7	Green	AWG22	Cargo Side Door IC/7	CAN3H	CAN bus 3 signal high
8	Yellow	AWG22	Cargo Side Door IC/2	CAN3L	CAN bus 3 signal low

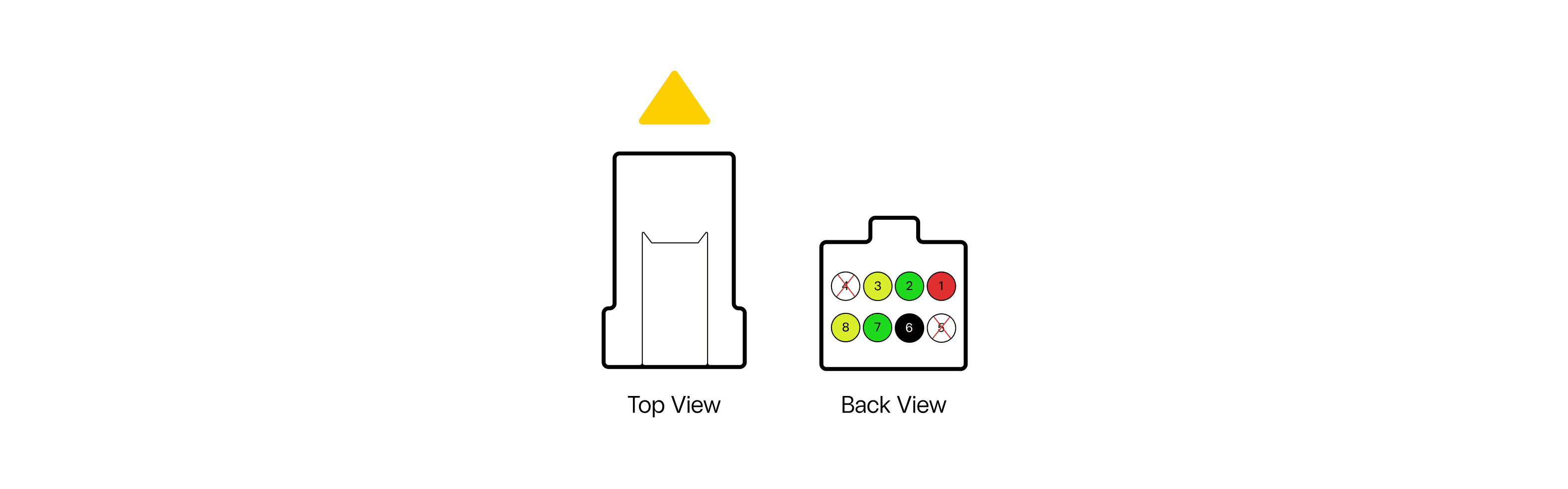

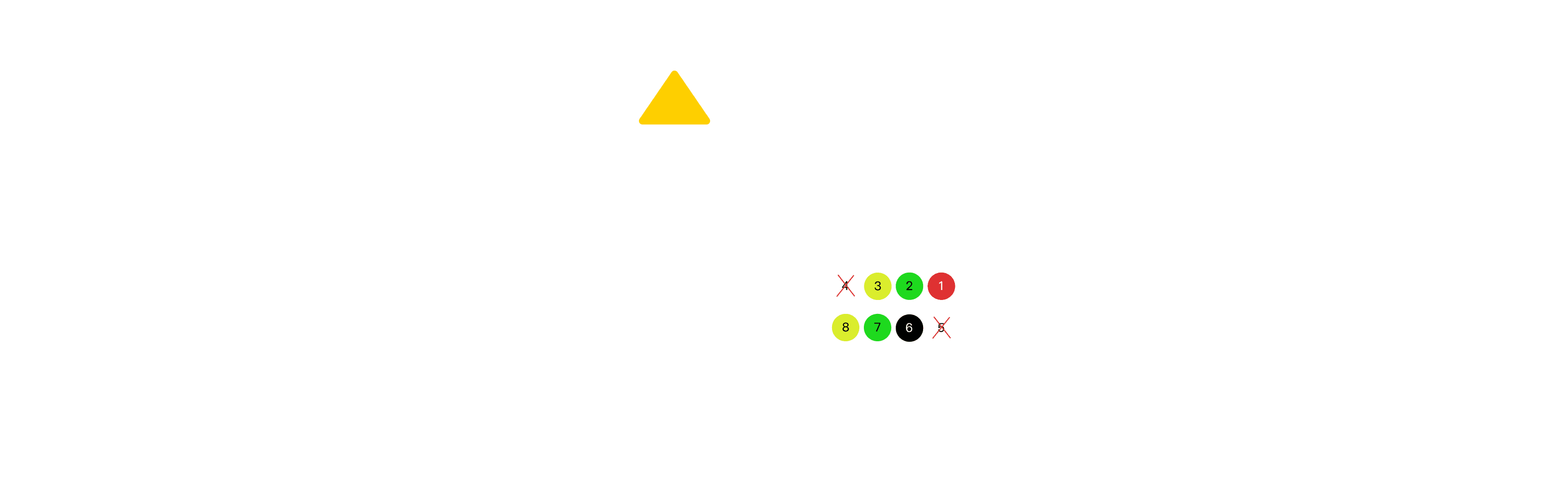

Cargo Side Door Inter-Connector

Pin No.	Pin Colour	Gauge	Destination	Signal	Pin Function
1	Red	AWG22	SP-020x	Cargo 12V	12V cargo box supply
2	Green	AWG22	Cargo Tray IC/2	CAN3H	CAN bus 3 signal high to tray connector
3	Yellow	AWG22	Cargo Tray IC/10	CAN3L	CAN bus 3 signal low to tray connector
4	---	---	---	---	---
5	---	---	---	---	---
6	Black	AWG22	SP-d21x	GND	Ground
7	Green	AWG22	Cargo Rear Door IC/7	CAN3H	CAN bus 3 signal high to rear door connector
8	Yellow	AWG22	Cargo Rear Door IC/8	CAN3L	CAN bus 3 signal low to rear door connector
