2. Technical Information

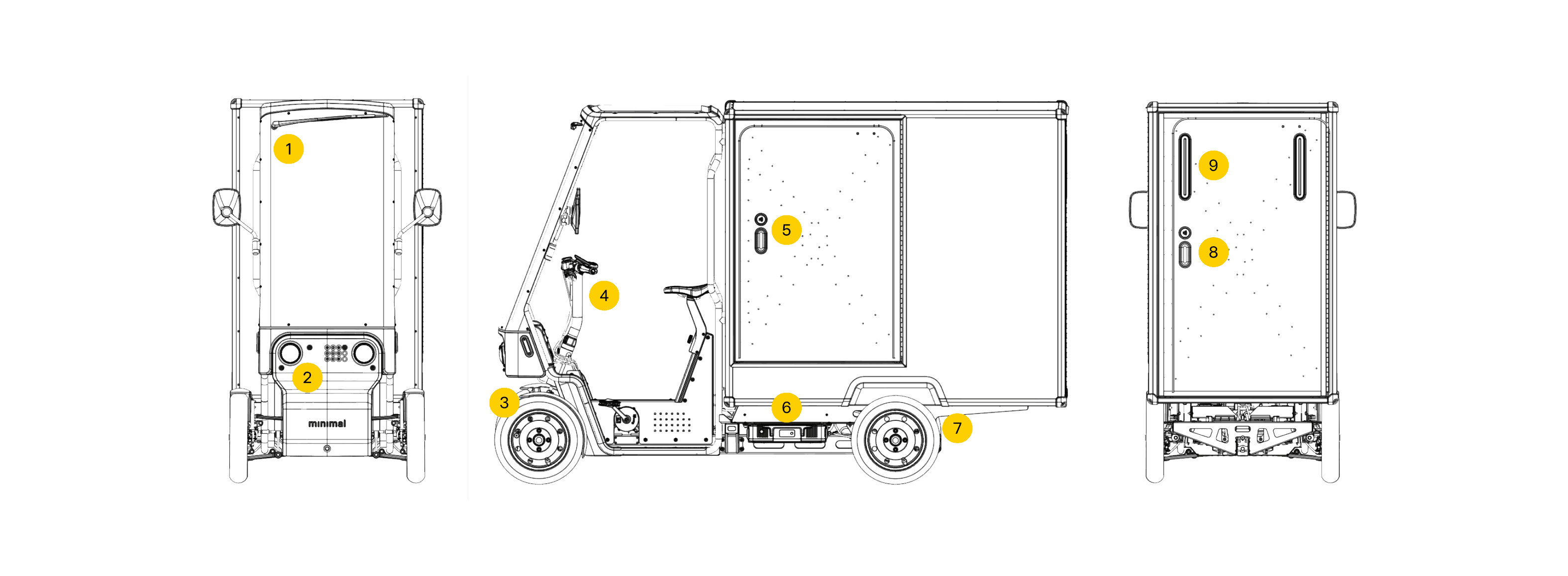

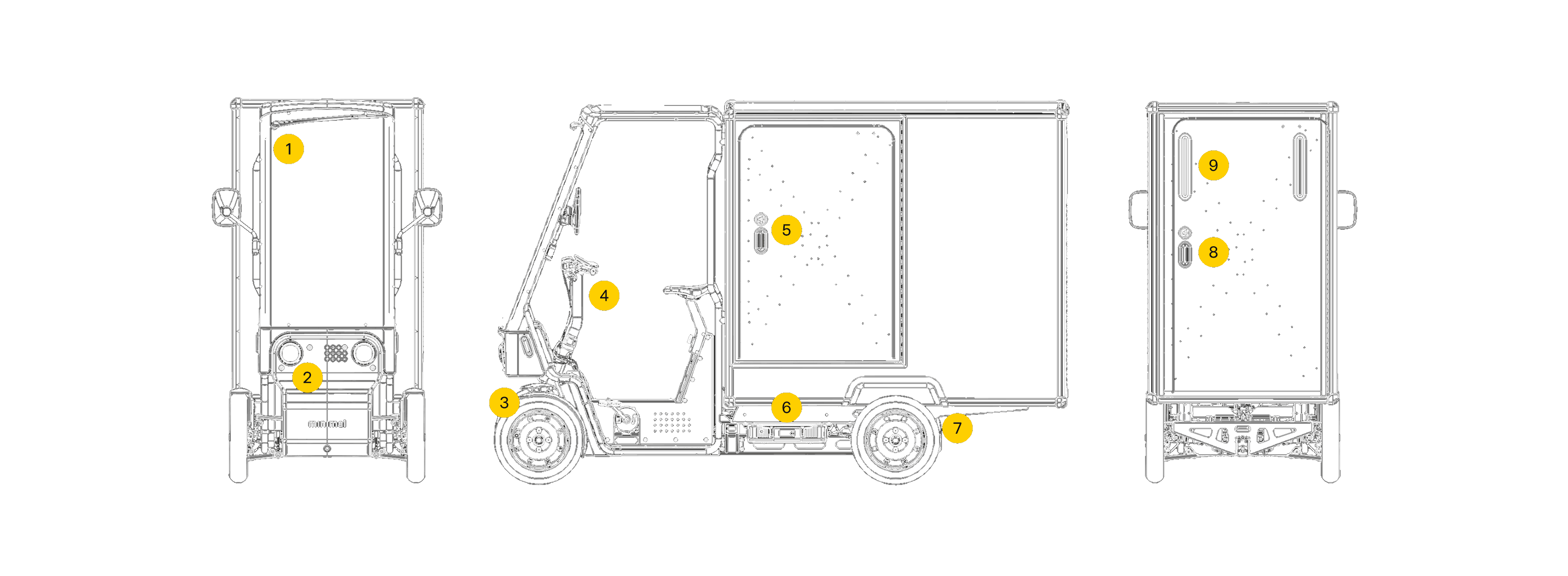

2.1 Vehicle Overview
- Front windscreen and windscreen wiper.
- Front lights, indicators and bumper.
- Front wheels and tyres.
- Cabin and vehicle controls.
- Side loading door, NFC security lock/unlock point with handle.
- 48V battery locations (RH and LH locations on opposite sides of vehicle).
- Rear wheels and tyres.
- Rear loading door, NFC security lock/unlock point with handle.
- Rear lights and indicators.
2.2 Functional Description
Minimal's Pedal 4 is a four wheeled electric-assisted vehicle (E-quadricycle) designed for urban logistics and last-mile delivery applications. It combines compact dimensions with functional performance to provide a practical and sustainable transport solution.
The vehicle is equipped with two 250W continuous-rated electric motors mounted at the rear axle and features pedal-assist capability, achieving a maximum speed of 15.5 mph (25 kph) in compliance with EAPC (Electrically Assisted Pedal Cycle) classification.
The Pedal 4 operates using up to two 48V swappable lithium iron phosphate batteries, allowing for extended range and minimal downtime during operations. Conservatively, range is estimated at 60km from full charge to empty using two batteries
Designed for load-bearing utility, the Pedal 4 can be laden up to 350kg (including driver weight), making it a robust and agile alternative to traditional delivery vans.
Note
Further details on the EAPC classification can be found on the UK government website: EAPC Information Sheet
2.2.1 Intended Use
The primary use case for the Pedal 4 is urban logistics and last mile deliveries, predominately in urban or semi-urban environments. The vehicle has been designed to navigate congested city streets, bike lanes and pedestrianized areas where vans and other vehicles may be restricted.
Compliant with the carrier cycles EN17860 standard, this e-powered cargo bicycle is classified as an electrically assisted bicycle under EU law. It functions much like a conventional bicycle, using pedals and handlebars in the same familiar way.
Caution
Misusing the Pedal 4 in dense pedestrian areas may result in minor to moderate pedestrian injury. Please respect and pay attention to other road users & never ride on the pavement always on a marked and dedicated road way.

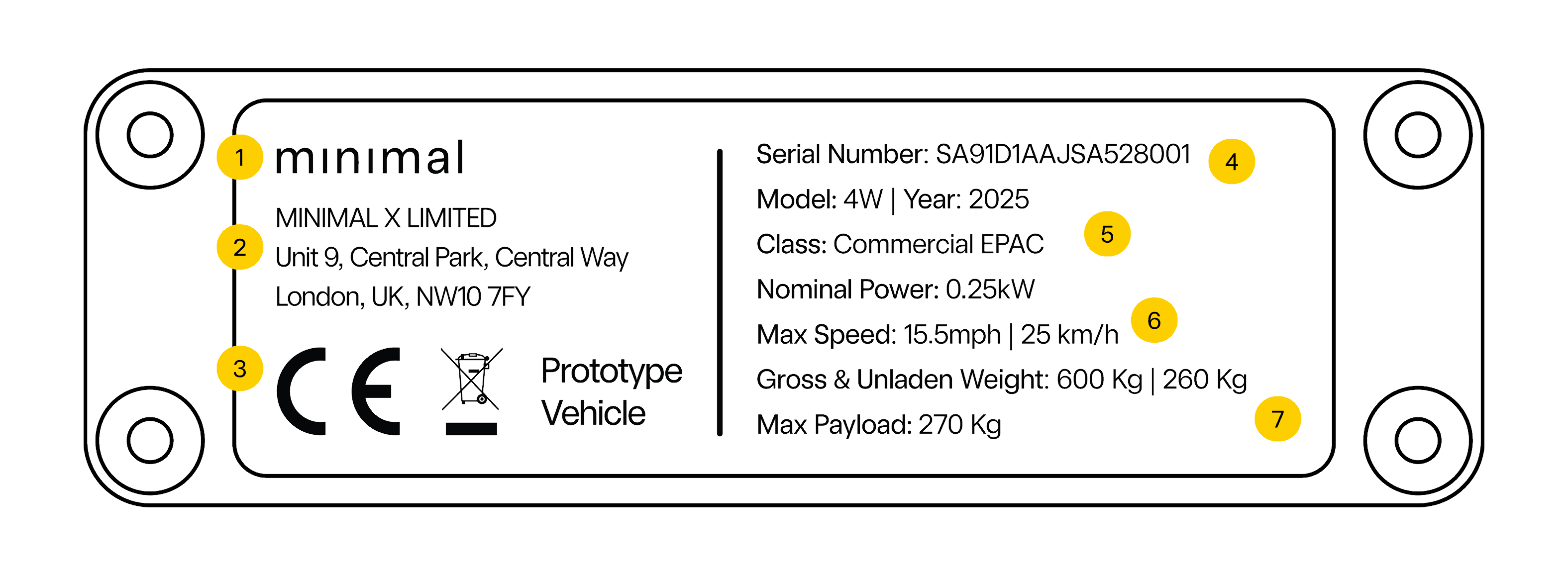

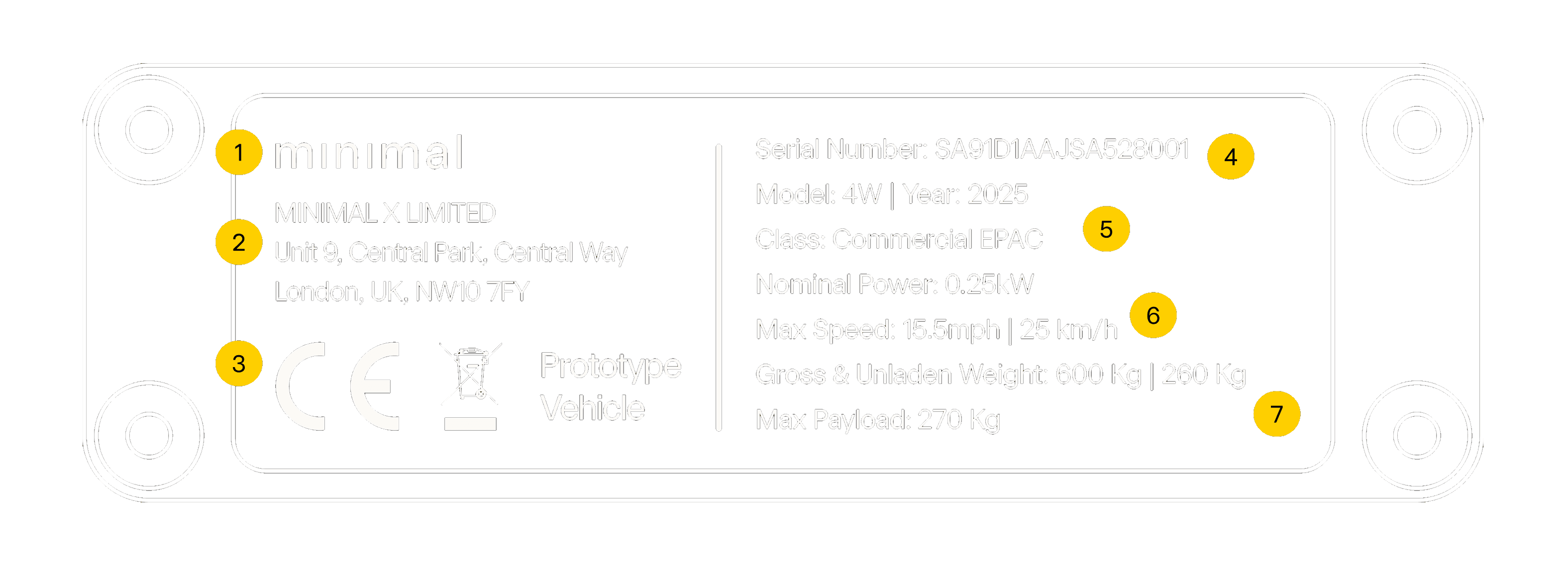

2.3 Type Plate
The type plate is used to display the following information about your vehicle:
- Minimal Logo and Registered Company Name
- Company Address and UK Postcode
- Conformity Marks - CE (Conformité Européene), & WEEE Mark
- Vehicle Serial Number
- Vehicle Type and Class
- Motor Output (Nominal Power) and Maximum Speed
- Total Vehicle Weights - Loaded, Unloaded and Payload Capacity
Note
The type plate is located on the left side of the cabin footwell, below the left pedal, next to the pedal generator. If you cannot locate it, please speak with a Minimal technical representative.
2.4 Vehicle Specification
The following provides an overview of the Pedal 4 specification:
2.5 Vehicle Labels
Vehicle labels are included to help guide you through the use of the Minimal Pedal 4 EPAC without having to refer back to this user manual. Labels are used as quick reminders but should not substitute for understanding the material covered in the user guide.

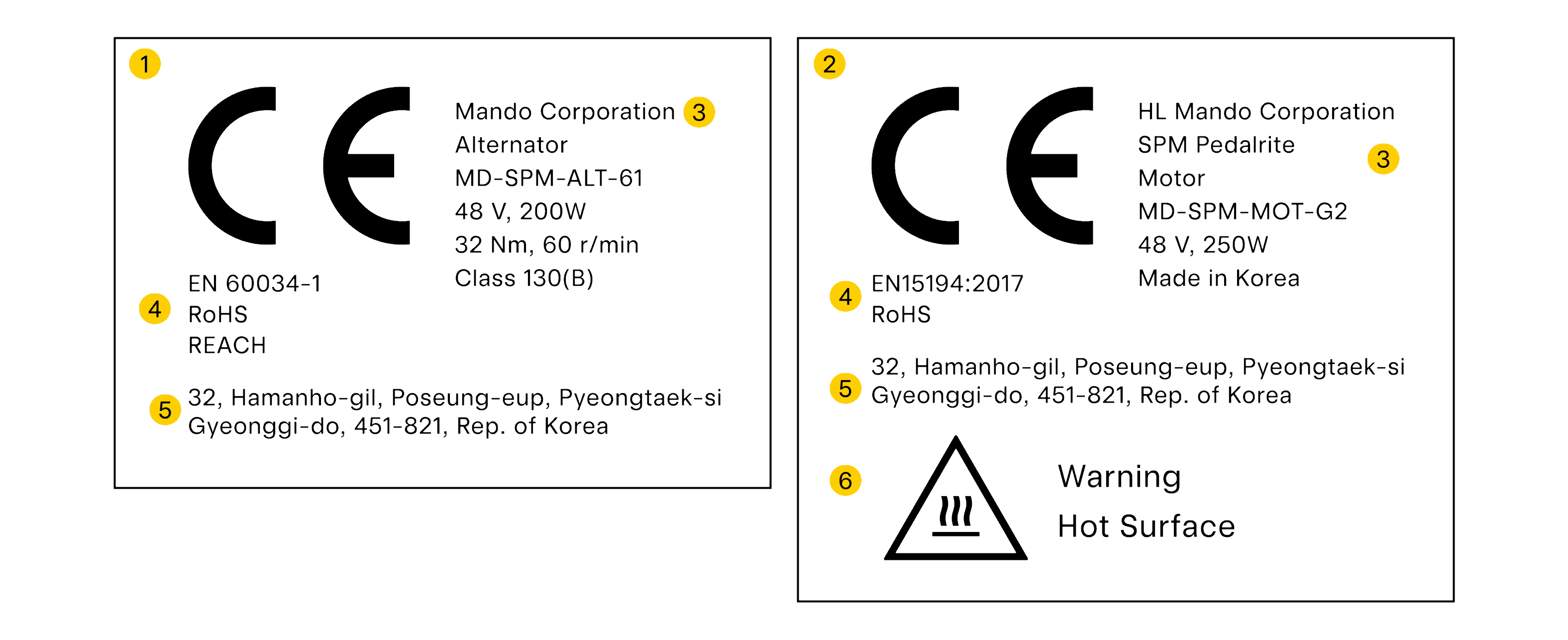

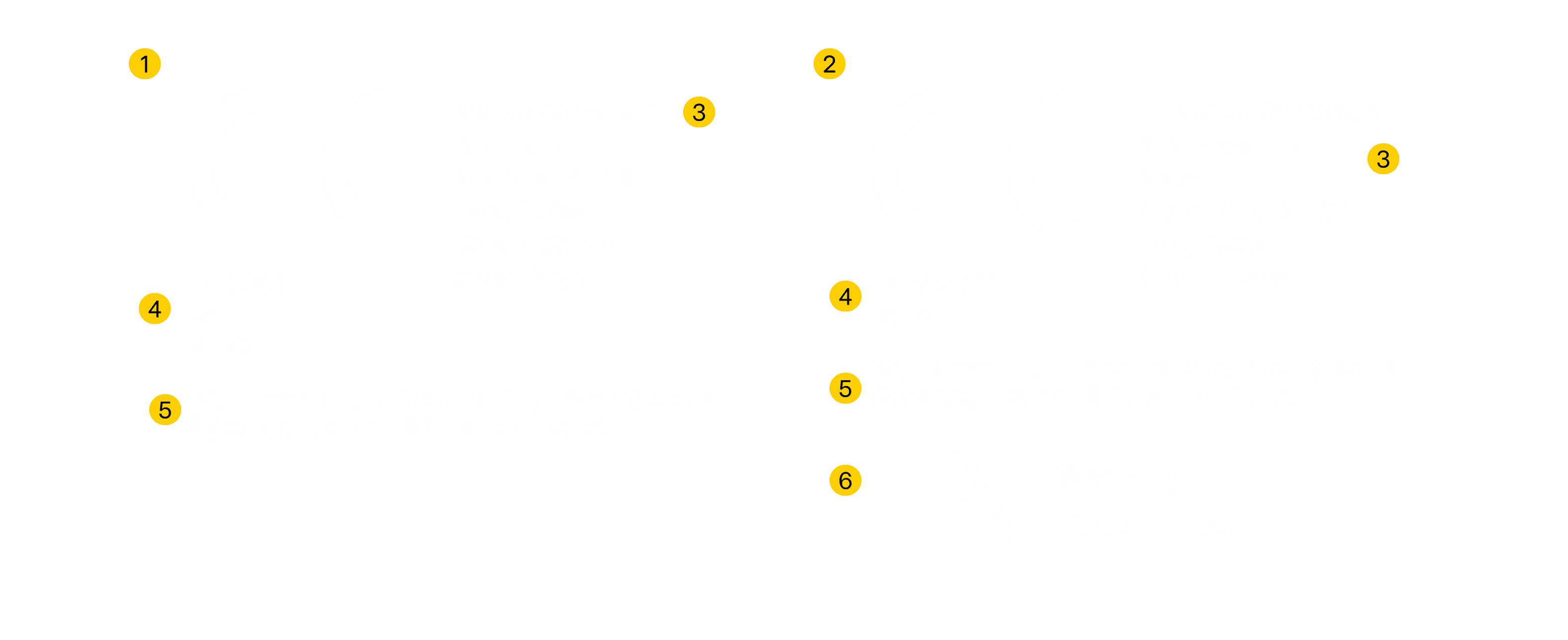

2.5.1 Pedal Generator & Motor Labels
- Label for Pedal Generator
- Label for Vehicle Motors
- Manufacturer Name and Part information
- Compliance and Standards
- Manufacturer Address
- Hot Surface Warning Label

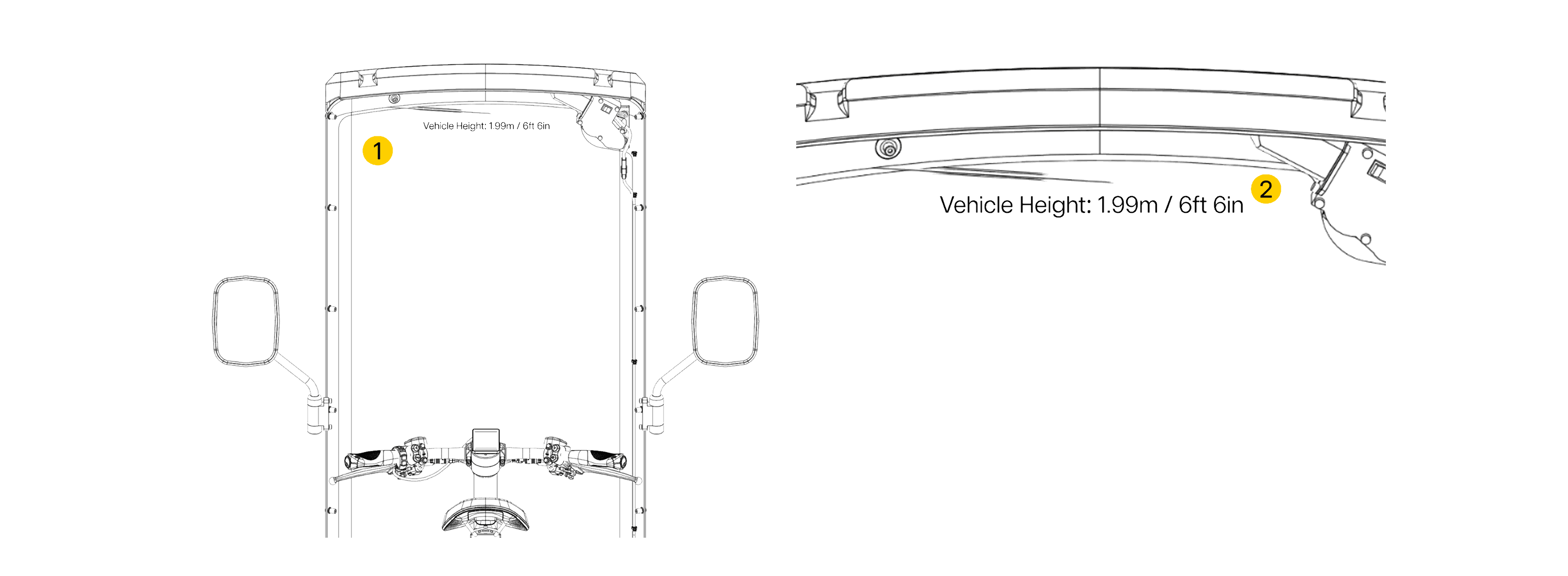

2.5.2 Vehicle Height Label
Height of vehicle in both Metric and Imperial units stated on inside of windscreen at top edge.
